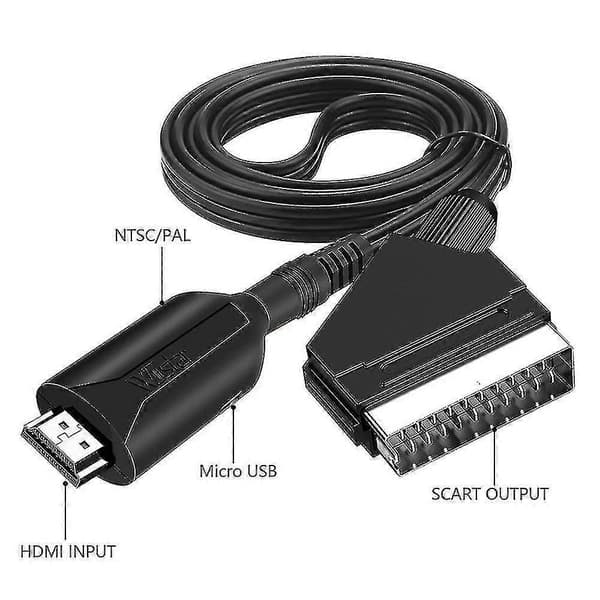

The HDMI to SCART converter converts HDMI video signal or audio signal to SCART composite video signal while supporting DVI system side signals. It helps the user convert the high quality of the HDMI video signal to normal SCART (standard definition 480i, 576i), allowing it to be played on TV, VHS VCRs, DVD recorders, etc. and supports PAL_B/N/M NTSC_M/J/Nc six video modes and supports SCART

1.1 Features

1. No need to install drivers, portable & flexible, just plug and play.

2. Low power and no power adapter.

Note: When the converter is connected to some devices (e.g. Sony Blu-ray DVD, XBOX360, PS4 etc.) that cannot supply enough power from the HDMI port, the converter needs additional power supply via the USB cable.

3. Compatible with HDMI1.3.



1. Input ports: 1HDMI.



2. Output ports: 1SCART



.HDMI input resolution:



600480@60Hz, 800600@60Hz,



1024768@60Hz, 1280720@60Hz,



12801024@60Hz, 1360768@Hz,



19201080@60Hz,



480i/60Hz, 480i/60Hz,



576i/50Hz, 576P/50Hz,



720p50/60Hz, 1080I50/60Hz, 1080p50/60Hz.



6. SCART output: PAL NTSC



.MODE key: Pressing the key changes the video mode to the output video mode.
