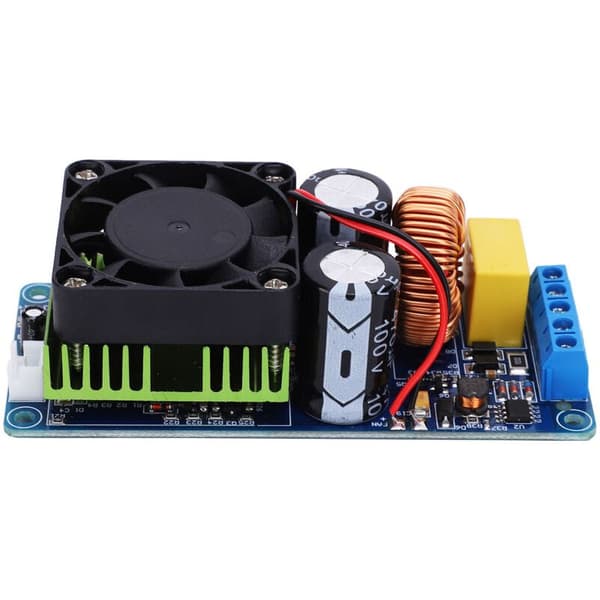

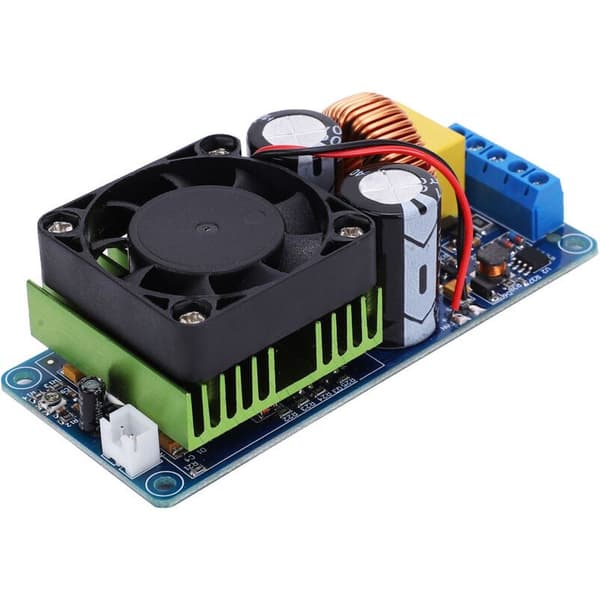

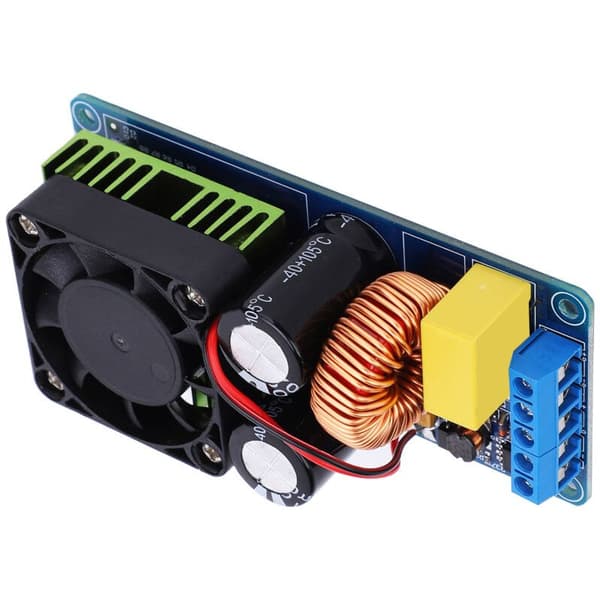

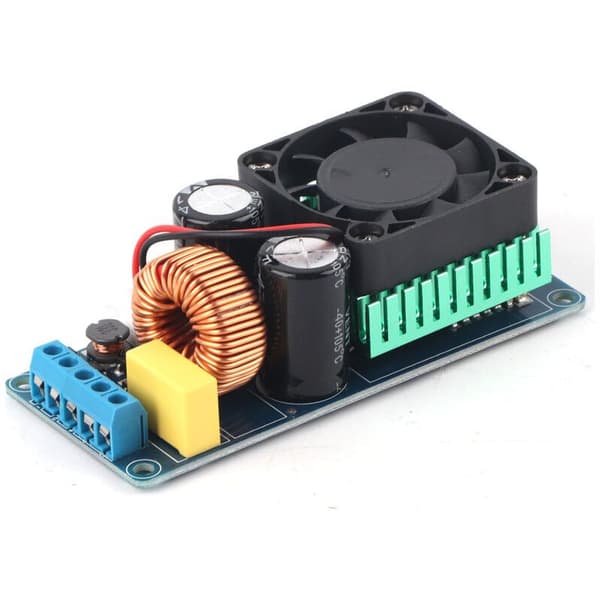

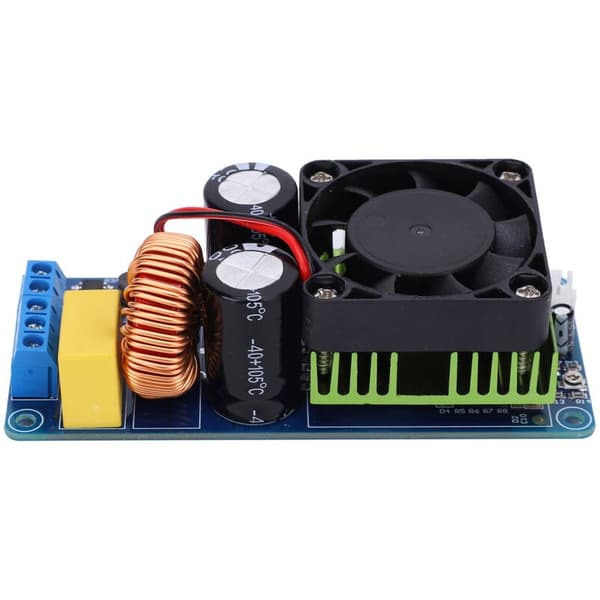

Discover our high-performance digital amplifier module, model IRS2092S. This module is designed to deliver an exceptional and reliable audio experience.

The sound from this amplifier is remarkably balanced. The bass is stable and powerful, the treble is clear and sharp, and the soundstage exhibits very good expansion. It integrates high-frequency capacitors with low impedance, ensuring stable and reliable performance. Thanks to the use of a professional amplifier chip and high-quality audio components, the sound quality is excellent and distortion is significantly reduced.

Manufactured with high-quality electronic components and a precision process, this module ensures high durability. Its excellent finish makes it a perfect replacement for an old damaged module.

**Product Details:**

* **Item Type:** Digital Amplifier Module

* **Material:** Plastic

* **Model:** IRS2092S

* **Rated Output Power:** 500W (with +/- 65V power supply, 4 ohm load, 10% distortion)

* **Efficiency:** ≥ 90%

* **Signal-to-Noise Ratio (SNR):** 90dB

* **Total Harmonic Distortion:**

* 380W (+/- 65V power supply, 4 ohm speaker, distortion < 0.1%)

* 280W (+/- 65V power supply, 8 ohm speaker, distortion < 0.1%)

* **Frequency Range:** 20Hz - 20KHz

* **Recommended Speaker Impedance:** 4 - 8 ohms

* **Voltage Gain:** 36 times

* **Input Sensitivity:** 1.5V (RMS)

* **Built-in Protections:**

* Output short-circuit protection: Yes

* Speaker protection against DC bias on the output: Yes

* Overheat protection: Yes (output shutdown activates if heatsink/FET temperature exceeds 100°C)

* **Amplifier Board Dimensions:** Length x width x height ≈ 98 x 43 x 30 mm / 3.9 x 1.7 x 1.2 inches

**Precautions for Use:**

* Recommended power supply: DC 58-70V.

* Recommended speaker: 4-8 ohms / 10-18 inches.

* Carefully check wiring before startup to ensure correct connection.

**Scope of Delivery:**

* 1 x Digital amplifier module.
