Supports CAN V2.0B technical specifications, communication speed 1Mb/S

0-8 long data field

Standard frame, extended frame and remote frame

Module 5V DC power supply, SPI interface protocol control

120ohm terminal resistor. Impedance matching ensures drive capability and prevents signal emission during long-distance data transmission

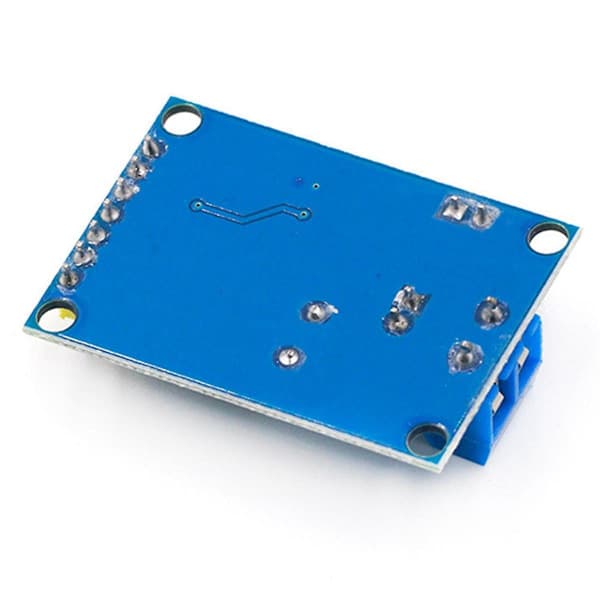

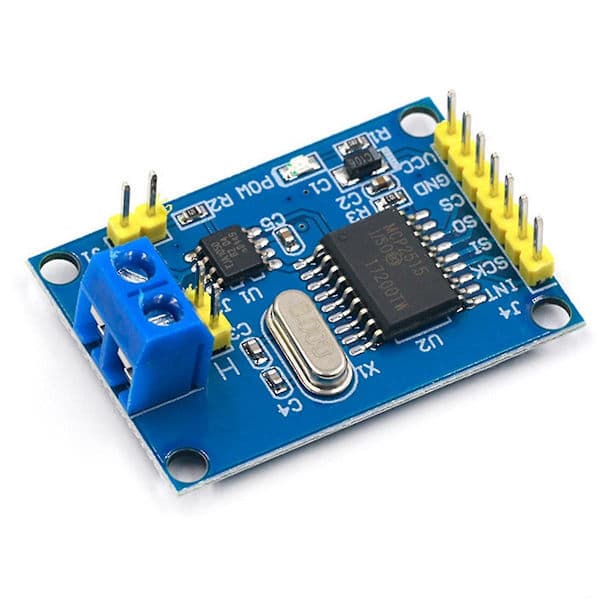

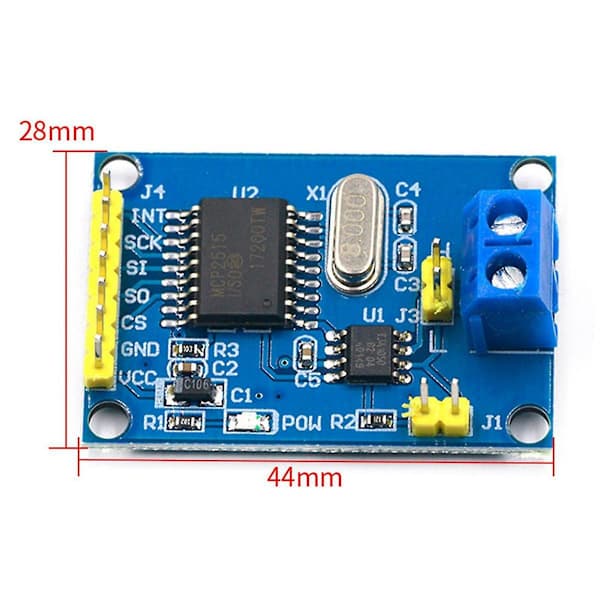

The MCP2515 CAN module is a CAN bus module based on the MCP2515 CAN controller and TJA 1050 CAN transceiver. The modular circuit design is smart and reasonable, the circuit board is exquisite and elegant, and the microcontroller program is simple and easy to understand. The module is powered by a 5V DC power supply and can be easily used on traditional 51 microcontrollers, new 51 microcontrollers, ARM and other controllers via the SP protocol.

Working current: typical value 5mA, standby current 1uA. (Excluding power indicator lights)

Working temperature: Industrial grade -40-85

Due to different batches, there may be differences in product appearance and printed text, which does not affect use.

Color: As shown

Material: PCB

Package Contents:

1 * module

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
