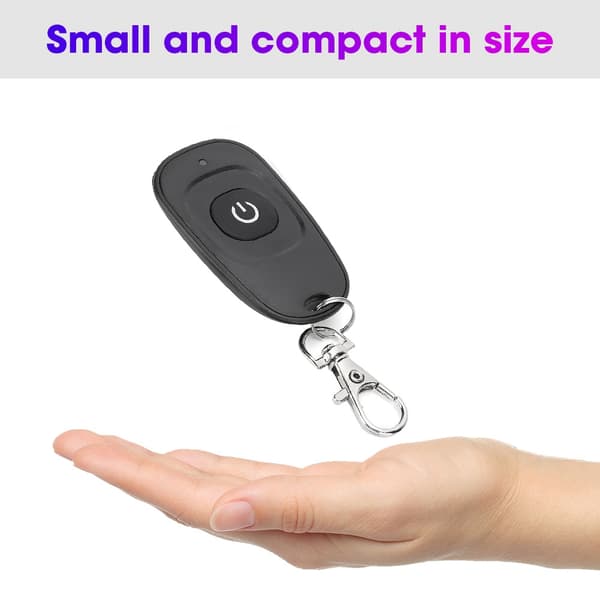

1. This remote control switch is small and easy to carry.

2. High receiver sensitivity, greater than -95dB. 3. Has multiple working modes, such as jogging, self-locking, interlocking (adjustable).

4. Made of top quality material for maximum durability.

5. Manufactured in accordance with standard specifications and strictly follows factory quality control.

Project Type: Wireless Remote Control Switch

Material: Plastic

Color: Black

Working Voltage: DC12V

Static Working Current: ≤10mA

Working Temperature: -60℃-+70℃

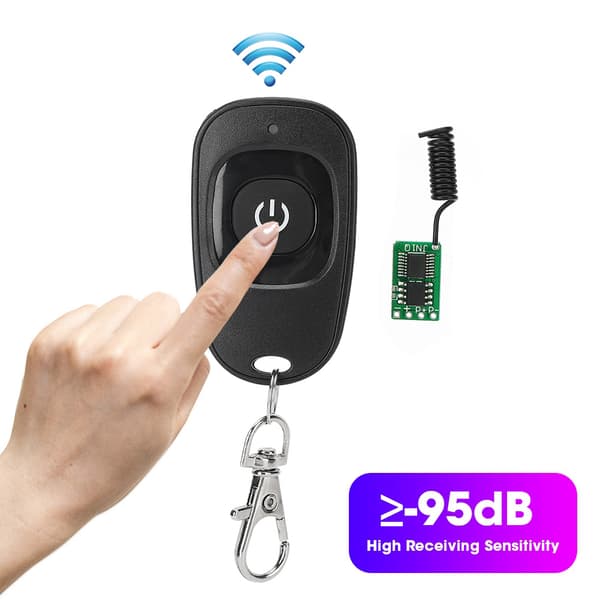

Receiver Sensitivity: ≥-95dB

Working Frequency: 433.92MHZ

Output Current: ≤10A

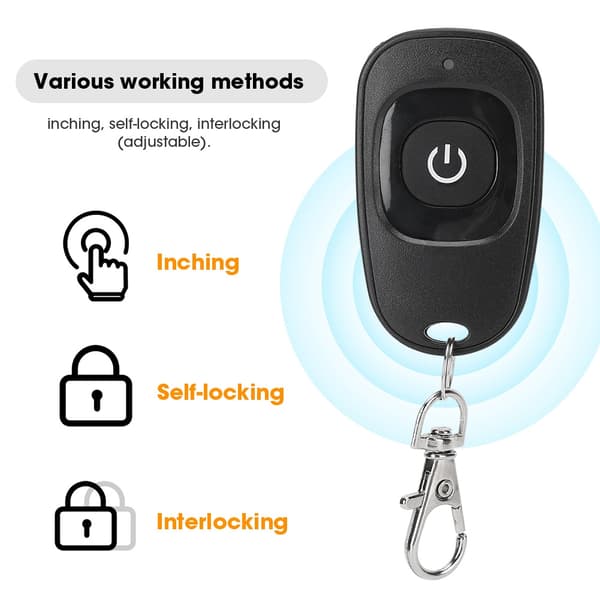

Working Mode: Jogging, self-locking, interlocking (adjustable)

Output Mode: Contact output (controllable AC and DC)

Remote Control Battery Material: Lithium manganese battery

Remote Control Battery Capacity: 230mAh (built-in)

Module Parameters

The low-power receiver is in standby mode (standby mode) when not in use. To use the power on, press and hold the remote control button for 0.5 seconds to wake up the receiver to receive the output voltage (the average power consumption is 0.5-0.6 mA per hour in standby mode, and the average power consumption is 0.5-0.6 mA per hour when working), so it is the most energy-saving switch that does not consume power even when not working

Working Voltage: DC3.3V-12V (powered by dry batteries, lithium batteries, power banks)

Maximum Load: 1A (recommended load is less than 700mA/0.7A)

Working Frequency: 433MHZ

Static Working Current/Working Current: 0.5mA

Working Mode: jogging or linking

Package List:

1 x Wireless Remote Control

1 x Module
