Capacity range: 0-10 Bar (1MPa=10Bar)

Comprehensive precision: 0.5%

Working voltage: 24V DC (Wide voltage range: 10-33VDC)

Output signal: 4-20 mA

Protection grade: IP68



Pressure connection: G1/4

Overload capacity: 2-4 times

Temperature range: -40 to 110

Housing material: Stainless steel

Pressure connection: DIN type

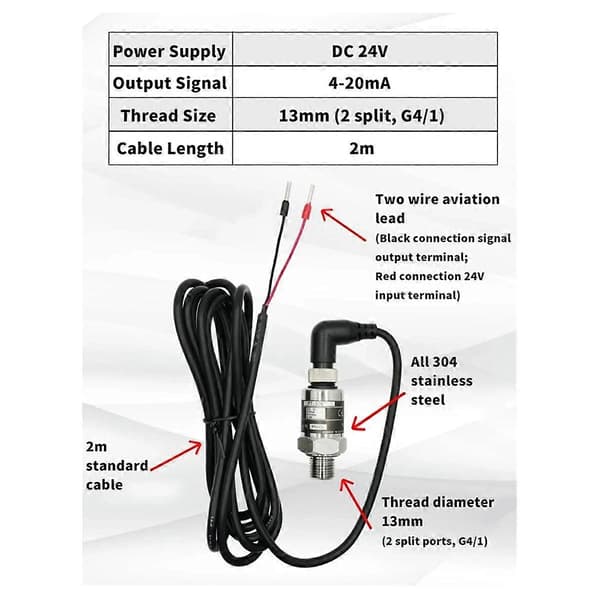

Cable connection: Red(IN+); Black(IN-)

Cable length: 2M

Applications:

1. Air compressor and pump;

2. Liquid pressure and air pressure system;

3. Energy resources and water treatment system;

4. Refrigeration equipment;

5. Automatic detection system;

6. Locomotive brake;

7. Environmental protection field;

8. Agricultural application and mechanical automation.

There are differences in pressure between batches, but it does not affect the use.

Color: Silver

Material: stainless steel



Package Contents:

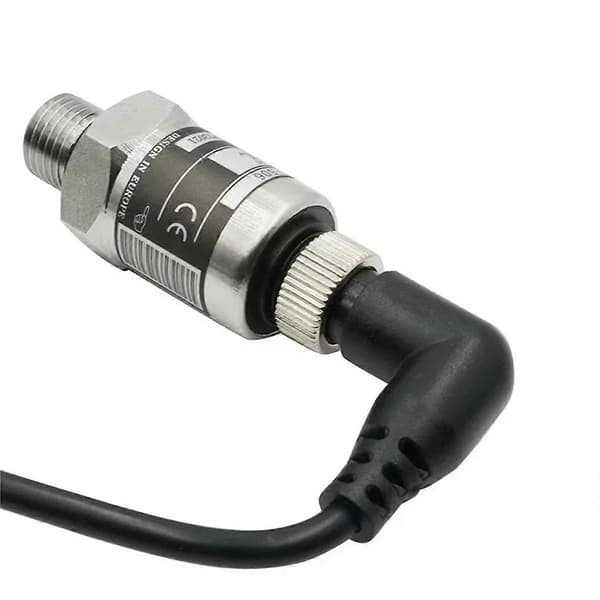

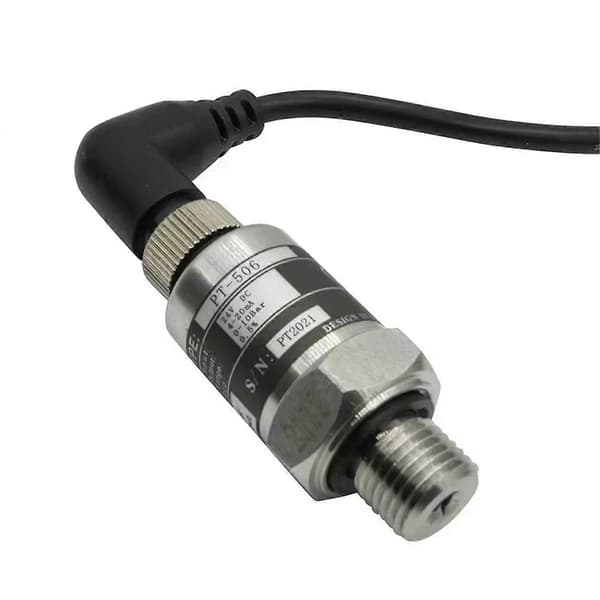

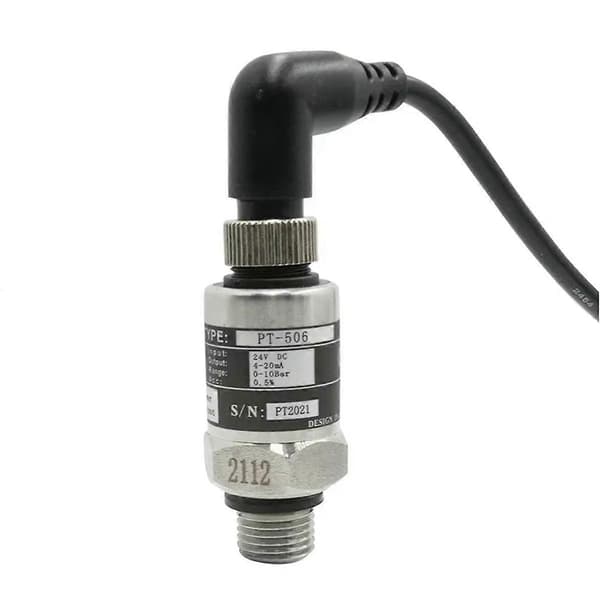

1 * Water pump pressure sensor (Different batches may have different printed words)



Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
