Feature:

1. Self-powered, no external power supply required.
2. Operating current 0.2-30A AC, adjustable with a potentiometer.
3. The LED indicator can conveniently and intuitively display the working status of the switch.
4. High power MOS tube contactless electronic switch.
5. The switch has no limitation on the number of opening and closing, and the reaction speed reaches ms level.

Specification:

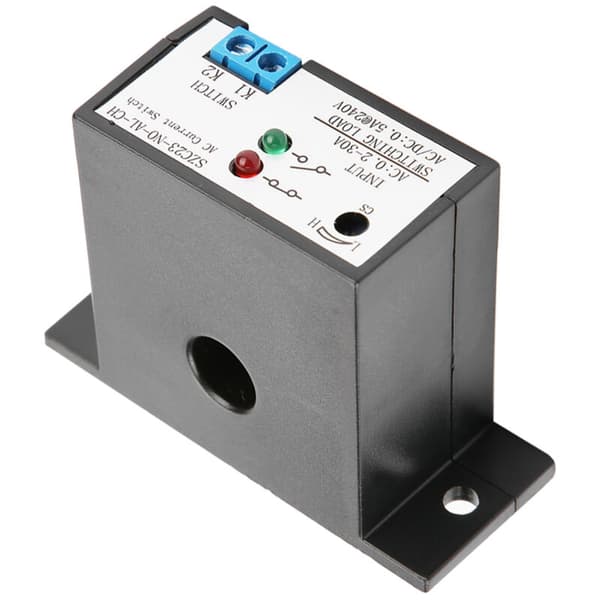

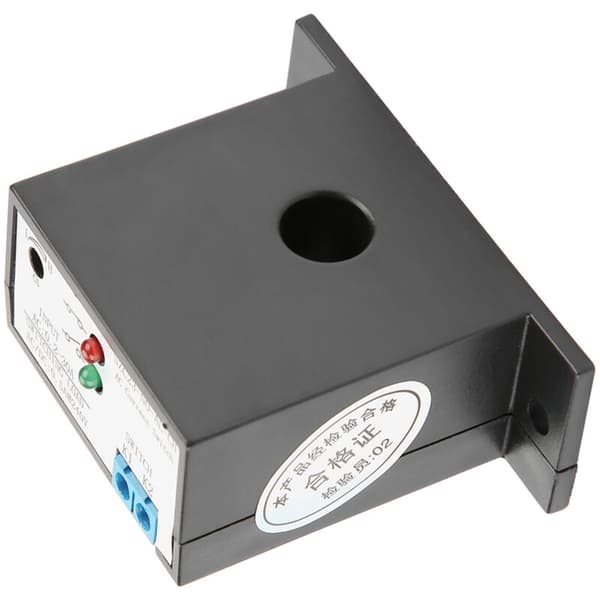

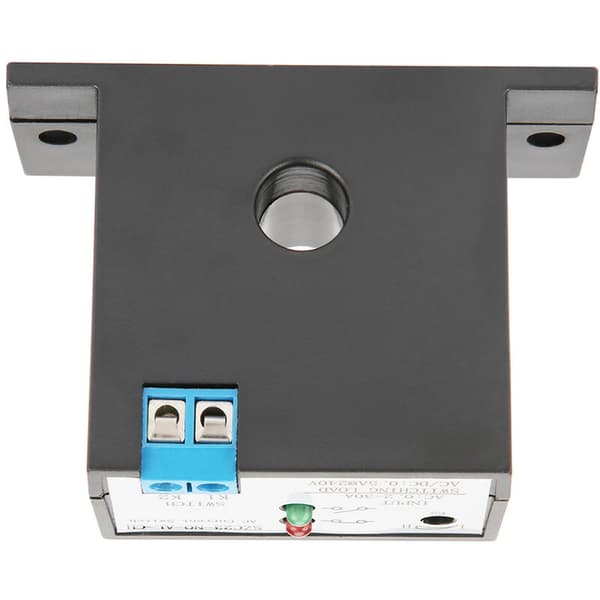

SZC23 series AC current sensor switch is designed and manufactured to solve AC current monitoring. It uses the principle of mutual inductance to detect AC current directly, isolate AC current, and output normally open or normally closed switching signal to directly control various automation industrial equipment, such as flash, buzzer, relay, single-chip microcomputer, or other electrical load equipment. Compared with traditional mutual inductors, thermal protectors, and other devices, the use of this device can not only achieve more accurate and faster control, but also simplify the design and reduce costs.

Features:
1. Self-powered, no external power supply required.
2. Operating current 0.2-30A AC, adjustable with a potentiometer.
3. The LED indicator can conveniently and intuitively display the working status of the switch.
4. High power MOS tube contactless electronic switch.
5. The switch has no limitation on the number of opening and closing, and the reaction speed reaches ms level.
6. Direct structural design, isolation withstand voltage up to 2000V.
7. The hysteresis is less than 1% and can be used under strong magnetic conditions.
8. The outer casing is made of self-extinguishing ABS material.
9. Suitable for AC current measurement and monitoring, AC motor overload protection, automatic control system electronic switch, etc.


Specification:
Model: SZC23-NO-AL-CH
Power supply: not required
Rated load: ≤0.5A@240V AC/DC
Input current: 0.2-30A AC
Minimum turn-on: 0.5 ± 0.2A
Maximum overload: 100%
Leakage current: ≤0.1A
Accuracy: 1%
Hysteresis: ≤1%
Response time: ≤200ms
Repeatability: 100%
Working temperature: -20~60℃
Waterproof: IP30

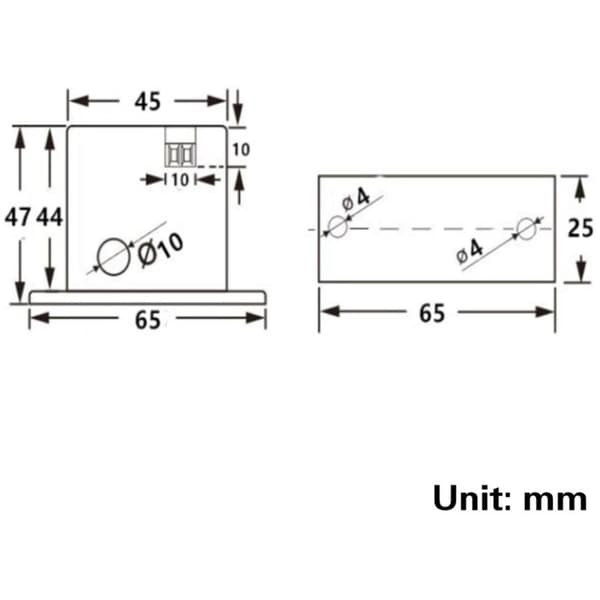

Dimensions: 65*25*47mm / 2.56*0.98*1.85in
Hole diameter: 10mm / 0.4inch
Package weight: approx. 56g/2.0oz

Package list:
1 * Current Sensor Switch
