Product Parameters:

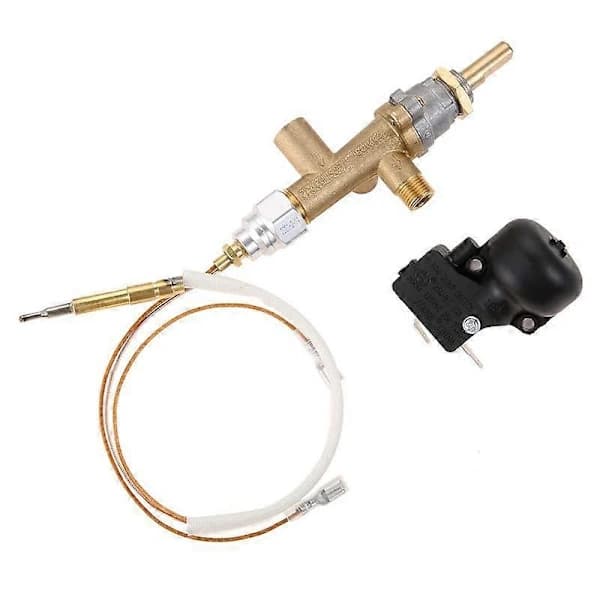

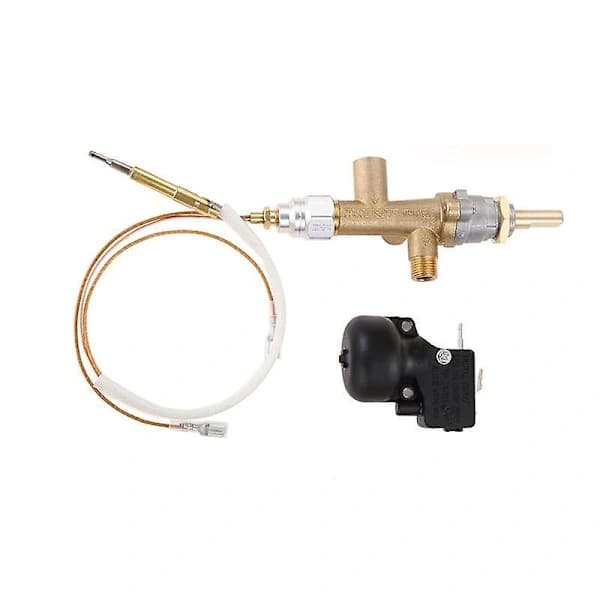

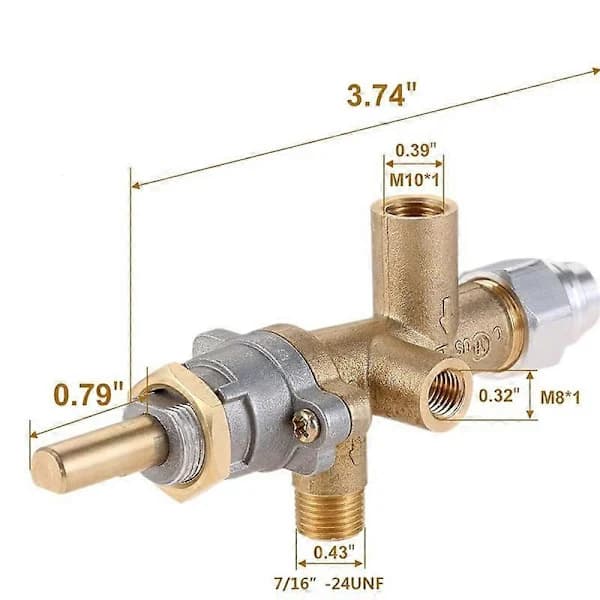

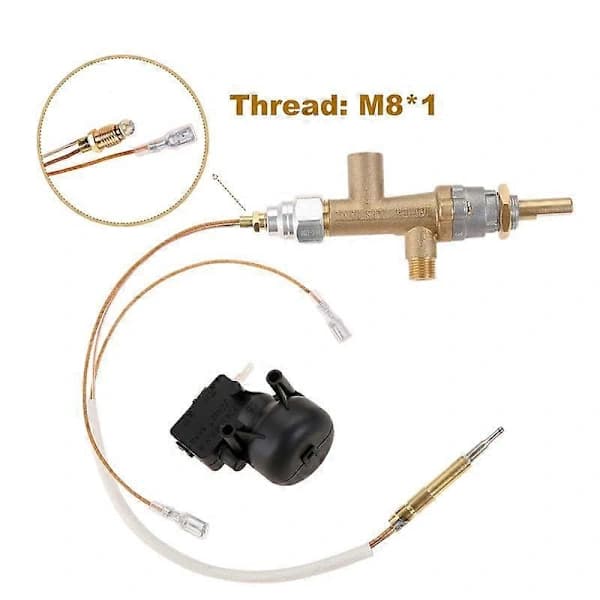

This patio heater control valve safety kit is shown in photo color and is made of brass and plastic. The specified size is 11.5cm. The inlet thread is internal M10 x 1, the outlet thread is 7/16 inch-24UNF, and the pilot burner connection thread is M8 x 1. It features an ON/OFF valve with an 8mm spindle shaft, an ABS material bakelite-style D-shaft knob, and a thermocouple wire length of 350mm. The package includes 1 heater control valve and 1 connector.

Core Features:
This product is designed as a propane control safety valve kit with thermoelectric safety support. The valve is for low-pressure use only, and the thermocouple is described with solid brass material and high-temperature protection. The brass valve body has a heavy-duty construction for durability, while the knob has a solid structure for repeated handling. The included tip-over switch is specified as an FD4 weak current switch.

Applicable Scenarios:
This control valve and fitting are suitable for propane heaters with thermoelectric safety systems. According to the provided information, it works with outdoor propane patio heaters, standing patio heaters, glass tube tower heaters, table propane heaters, and bay-type patio heaters. It is not suitable for natural gas heaters. Before installation, the interface of the heating equipment should be carefully checked, as different heater models may use different connection types.

Product Summary:
This is a brass and plastic control valve kit for propane patio heaters, built for low-pressure heating systems. With defined thread specifications, a 350mm thermocouple wire, and a connector included, it is intended for compatible outdoor propane heaters requiring thermoelectric safety control.
