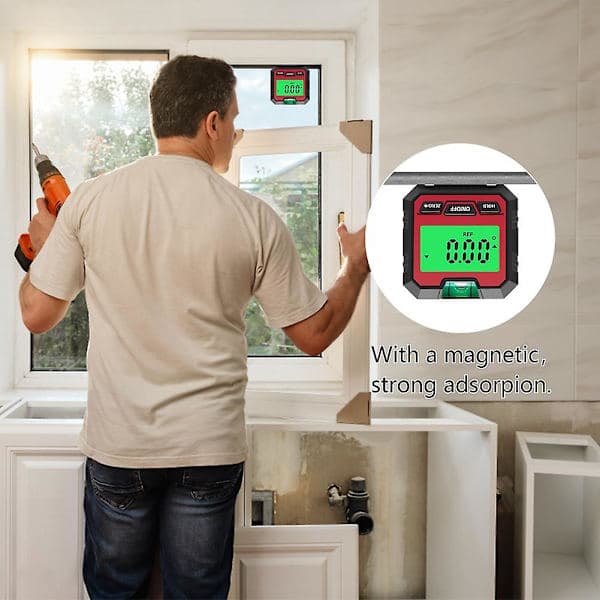

Magnetically attach to the measuring surface, which can be attached to the workpiece to be tested

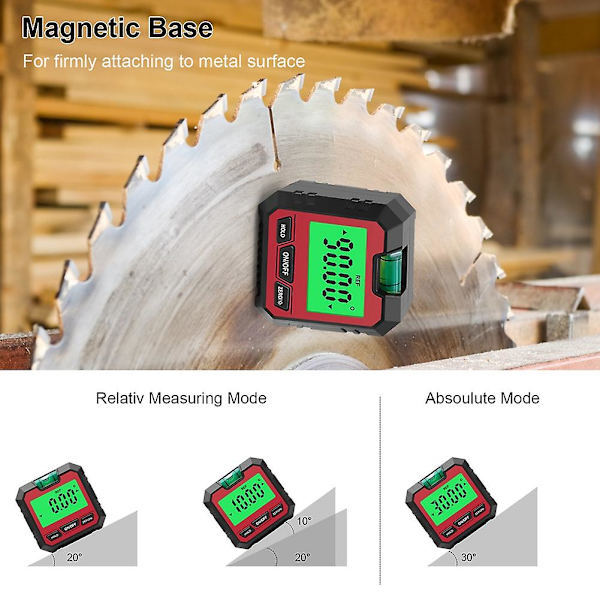

Relative measurement and absolute measurement conversion

Angle and slope conversion

Data locked for easy reading

Portable size, easy to use with other measuring tools to expand the measuring range

Specification:

2 AAA dry batteries (product does not include batteries)

Measuring range: 4*90 degrees 2*180 degrees

Display resolution: 0.05 degrees 0.05 degrees (less than 100 degrees), 0.1 degrees (100 degrees~180 degrees)

Accuracy: 0.2 degrees

Repeatability: 0.1 degrees

Working temperature: 0 Celsius~40 Celsius

Application:

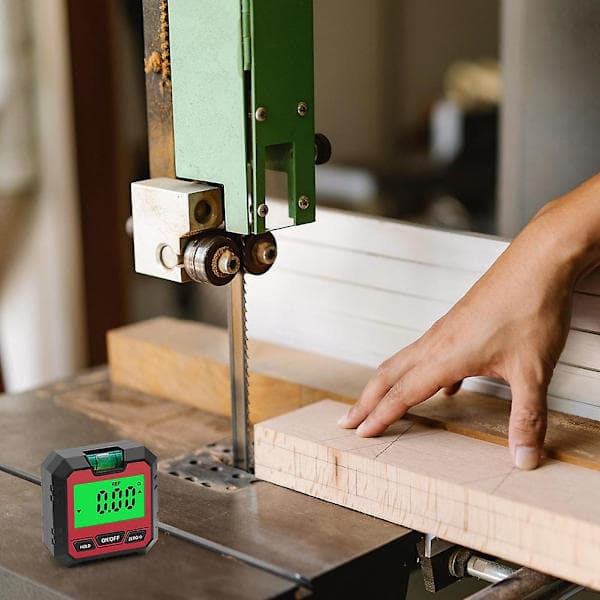

1 Woodworking: precision cutting of wood edges

2 Automobile repair industry: precise control of tire assembly angle

3. Machining: precise positioning of machine tool working angle, boom rotation angle

Color: Red

Material: ABS plastic

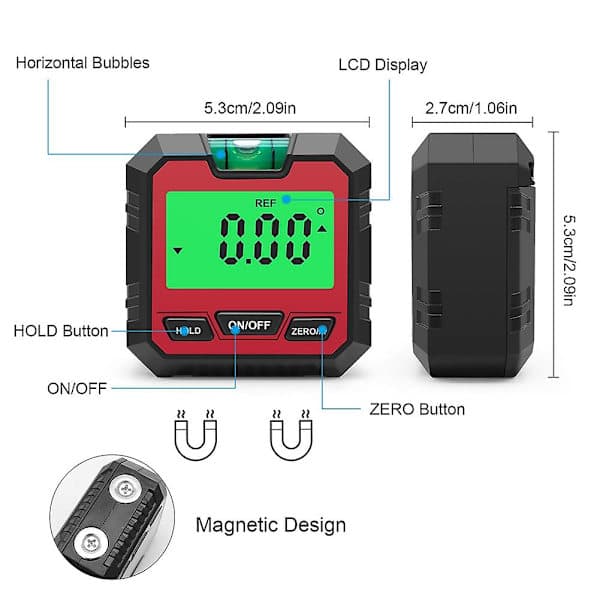

Size: 60 x 30 x 55 mm

Package Contents:

1 * Inclinometer

1 * English manual

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
