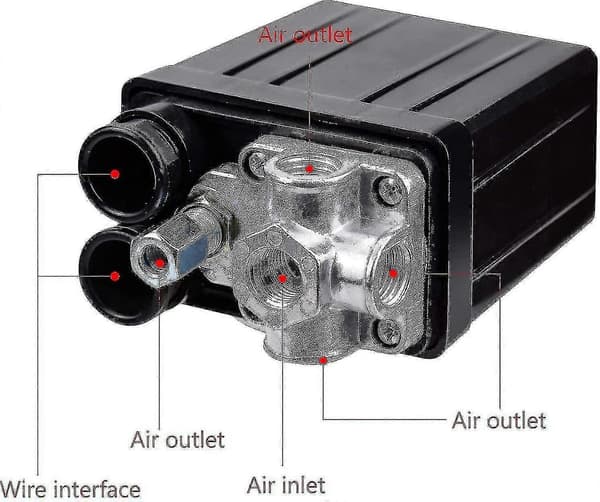

Pressure Switch, 380v Three-Phase 4-Hole Vertical Pressure Switch Control Valve For Air Compressor 1/4 \"

The product is shipped based on the color or size of the main image on the product page.

Quantity: one piece

Model: NF-A8 Vertical four-way switch

Weight: approximately 273 grams

Dimensions: 82*52*127MM (length*width*height)

Rated voltage: 220/380 V

Exhaust pipe: 6MM

Contact method: normally closed

Connection size: 1/4 inch 2 minutes internal thread approx. 12MM

Outer diameter of decompression port: 9.5MM

Maximum current: 20 A

Working pressure: 5-8KG (90-125PSI)

Lifespan: 80,000 times

High quality: Made of high-quality material, long mechanical life.

Replacement: Easy to install and use, the best replacement for the old or broken one.

Excellent performance: This pressure switch can work stably at 125psi pressure, it is a good switch for air compressors and can help you save electricity.
