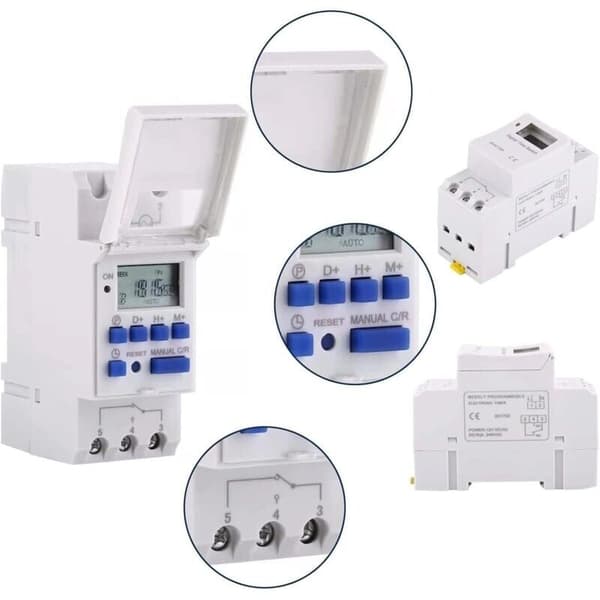

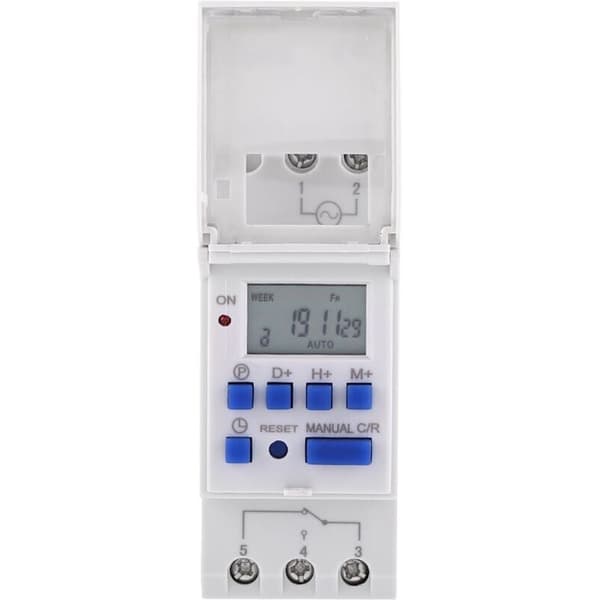

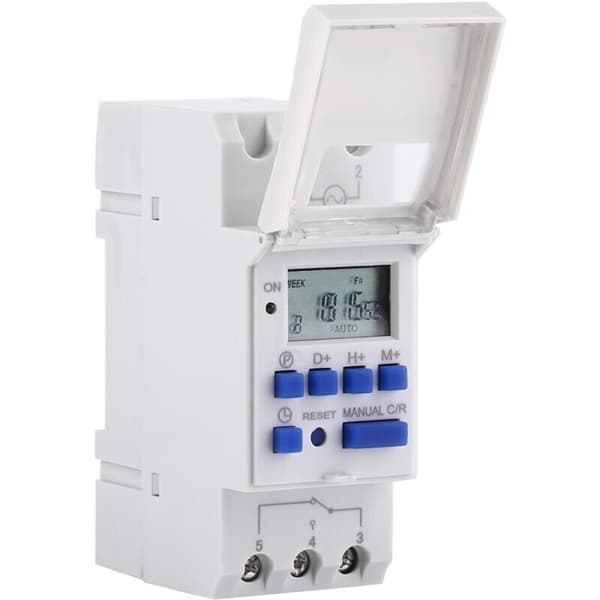

General Description: This digital electronic timer is designed to automatically turn on or off various electrical appliances according to user-defined schedules. It is equipped with a built-in 1.2V/40mA rechargeable battery and an industrial-grade chip, providing high accuracy and strong anti-interference capabilities. This device is ideal for controlling street lights, neon lights, production equipment, radios, TVs, and many other household appliances. Technical Specifications: Advanced pre-settings up to a week; Daily and weekly programs with 16 ON and 16 OFF settings; Setting accuracy down to the minute; LCD display showing hours/minutes and real-time modes ON/AUTO/OFF; Input voltage: AC/DC 12V, AC/DC 24V, AC 110V (optional); Contact rated voltage: AC 180V to 264V (50/60Hz); Load capacity: 16A 250VAC (resistive load); Error: ≤2s/day (25℃); Operating temperature: -10℃ to 55℃

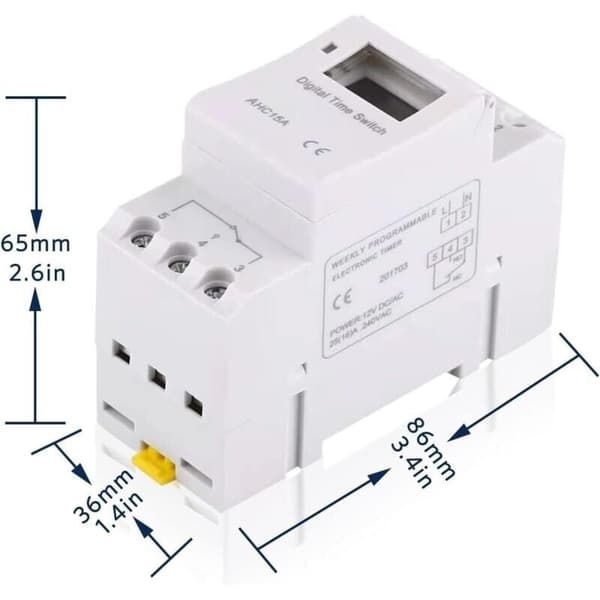

Size: 86 x 36 x 65 mm

Power: 4.5VA (maximum)

Timer: 1 minute to 168 hours

DIN rail mounting (rail not included)

Compatibility and Accessories: Compatible with various electrical appliances. DIN rail mounting. DIN rail not included. Installation: To install the timer, connect it to AC power and charge the built-in battery. Then press the reset button to set it. Usage: 1. By default, the timer operates in 24-hour mode. To switch to 12-hour mode, press and hold the 'time' button for 5 seconds until 'AM' appears. 2. Press the button again to return to 24-hour mode. The DIN rail is not included. Installation: To install the timer, connect it to an AC outlet and charge the built-in battery. Then press the reset button to set it. Usage: 1. By default, the timer operates in 24-hour mode. To switch to 12-hour mode, press and hold the 'time' button for 5 seconds until 'AM' appears. 2. Press the button again to return to 24-hour mode.
