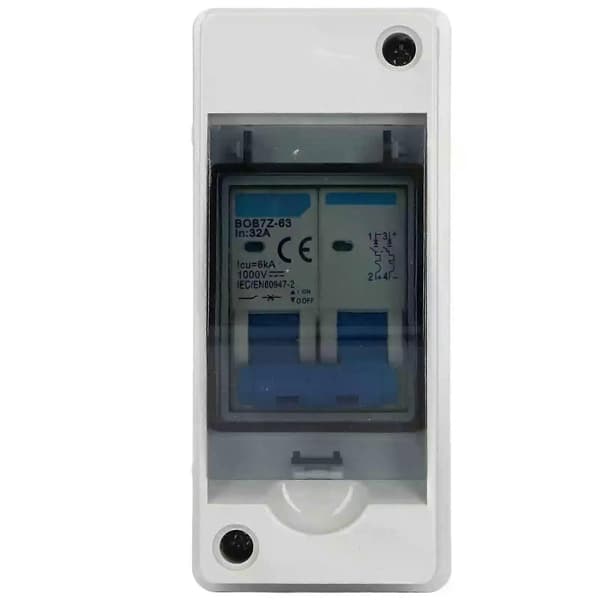

PV DC Circuit Breaker 32A 6KA IP65 Waterproof DC Isolator Switch Solar Disconnector 1000V

PV DC Circuit Breaker 32A 6KA IP65 Waterproof DC Isolator Switch Solar Disconnector 1000V
Feature:
1. Multiple Protections: Includes overvoltage, overload, and lightning protection, extending the lifespan of the solar system, supporting long-distance communication.
2. Reliable Components: Equipped with the most reliable DC modules to maximize the protection of this PV DC disconnector. Transparent cover is convenient for inspection.
3. IP65 Waterproof: Our DC circuit breaker is IP65 waterproof, allowing indoor and outdoor installation, capable of withstanding severe weather conditions and environments.

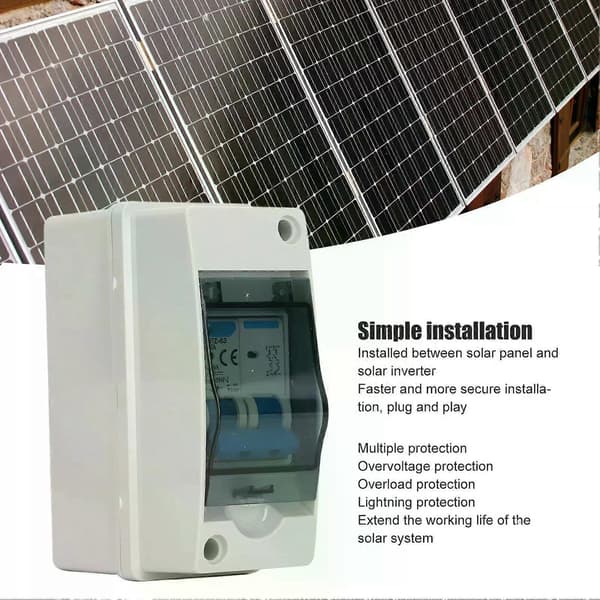

4. Easy Installation: Solar PV DC combiner box is installed between the solar panel and the solar inverter, enabling quick and safe installation, plug and play.
5. Wide Application: Applicable to PV solar panel grid-connected system and solar off-grid system, solar power generation system, household, RV, etc.
Specification:
Item Type: PV DC Circuit Breaker
Material: Polycarbonate, ABS
Model: BOB7Z 63 32A
Maximum Voltage: 1000V
Maximum DC Short-Circuit Current for Each Input (Isc): 32A
Protection Degree: IP65

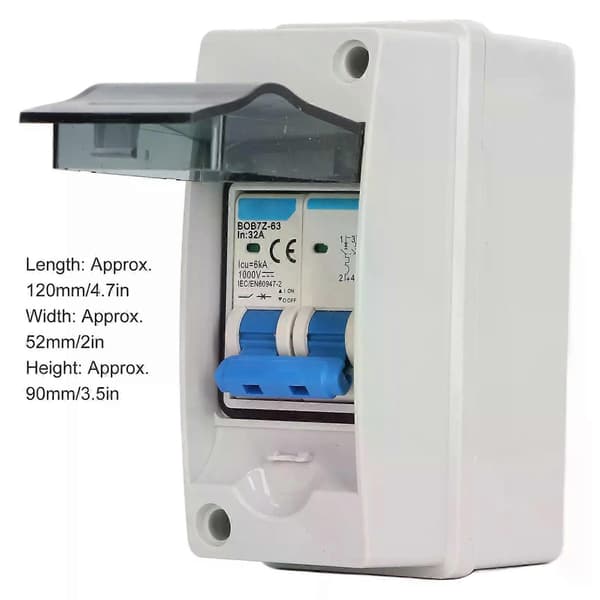

Size (L x W x H): Approx. 120x52x90mm/4.7x2x3.5in
Cable Entry: PG20 4
Output Cable Gland: PG20 4
Rated Insulation Voltage (Ui): 1000V
Rated Current (Le): 32A
Maximum Operating Voltage (Ucpv): 1000V
Rated Operating Voltage: 1000V
Breaking Capacity (ICU): 6KA
Wide Application: Applicable to solar PV panel grid-connected system and solar off-grid system solar power generation system, household, RV, etc.

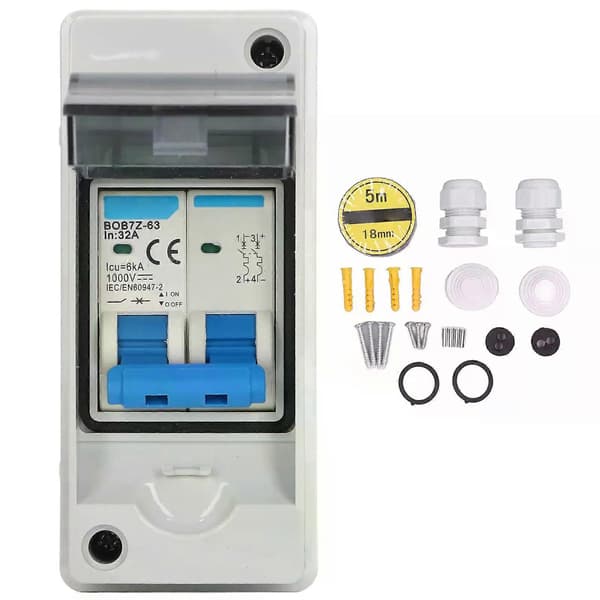

Package List:
1 x PV DC Circuit Breaker
2 x Connection Cover
2 x Connector
2 x Waterproof Ring
2 x Waterproof Head
3 x Short Pointed Screw
4 x Long Pointed Screw
4 x Flat Screw
4 x Anchor
1 x Waterproof Tape
