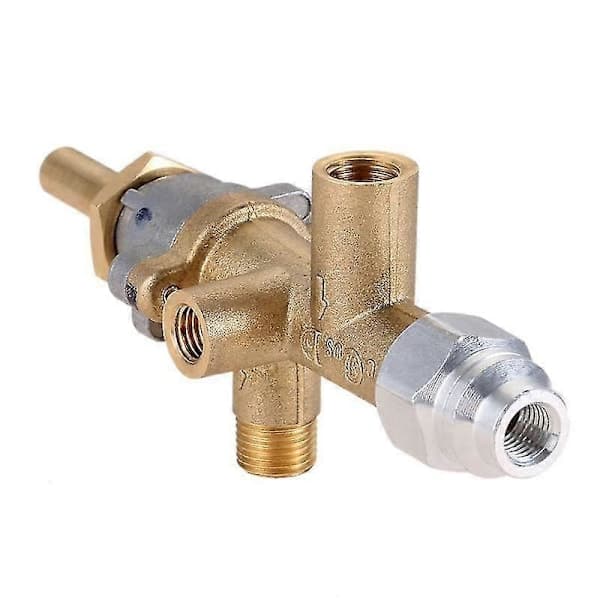

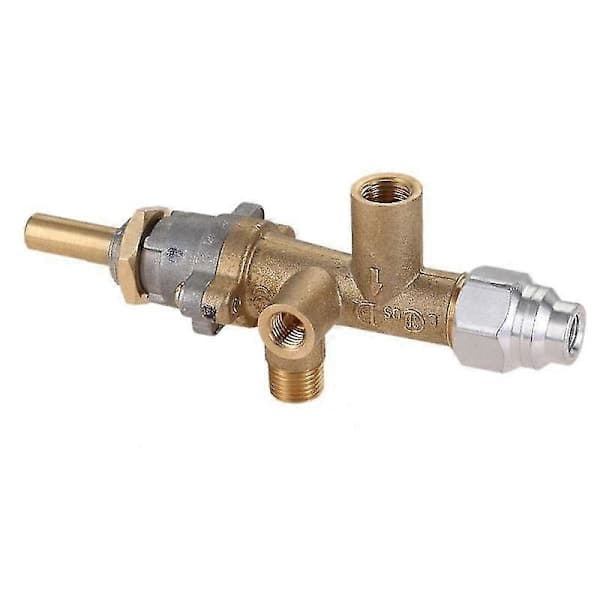

Gas valve with 8mm spindle shaft
Safety main control valve with inlet, outlet & pilot
Low pressure 65mbar gas valve thermocouple end M8*1
7/16-20UNF thread on outlet & M10*1 on inlet side
M8*1 internal thread on pilot port for 4mm copper or aluminum tube on pilot burner side
Inlet thread: Internal M10*1 (0.394 inches)
Outlet thread: 7/16 inch-24UNC thread (0.429 inches)
Low working pressure Max 1/2 PSI (65 mbar)
Shaft for 8mm knob
Suitable for gas heaters and room heaters with pilot burner connection
Compatible:
Works with outdoor propane heaters, standing heaters, glass tube tower heaters, table-mounted propane heaters, hall heaters.
Please pay attention to the interface size when purchasing, check the dimensions to avoid returns.
Color: Brass color
Material: Brass
Size: 9.5 cm
Package contents:
1 x Heater main control valve
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
