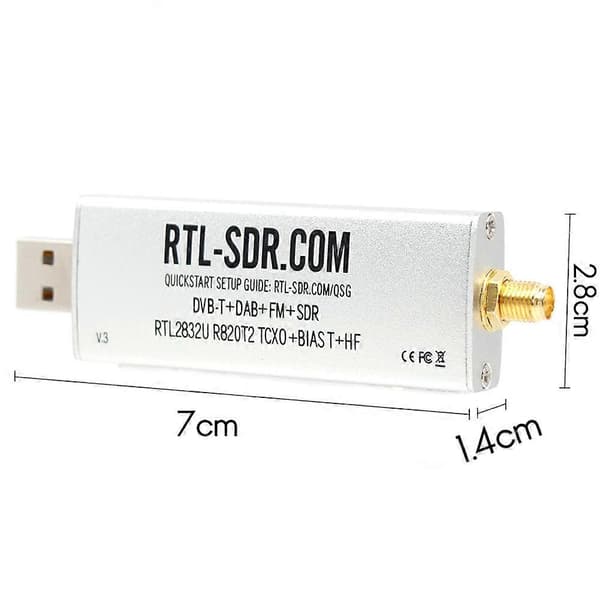

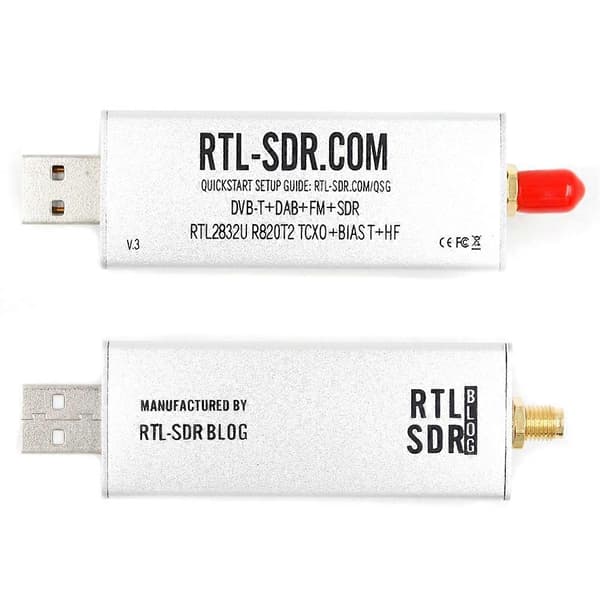

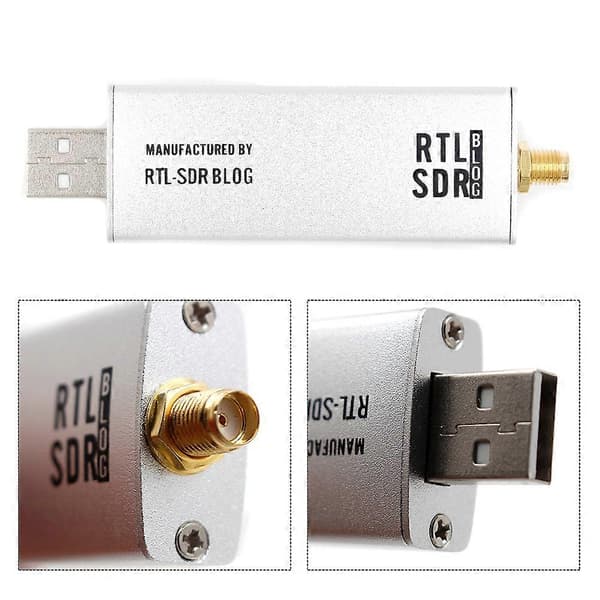

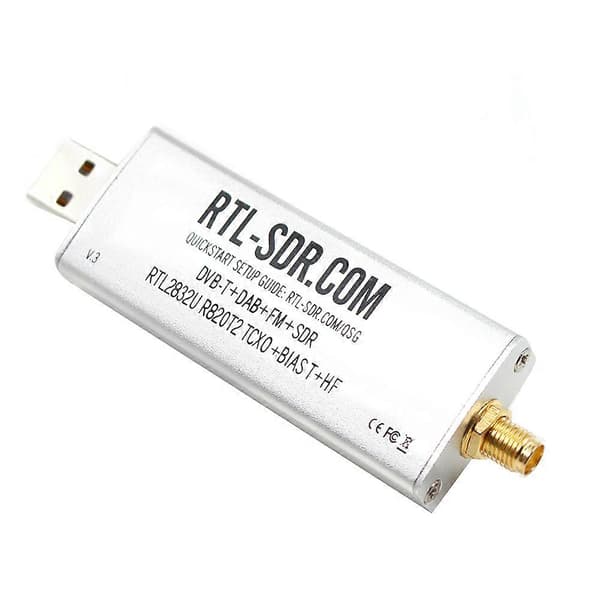

This is a receiver with RTL2832U chip, R820T2 tuner, 1PPM TCXO, SMA F connector and aluminum housing with passive cooling. Tunable from 500 kHz to 1.7 GHz with bandwidths up to 3.2 MHz (2.4 MHz stable). (HF works in direct sampling mode). Perfect for use as a computer-based radio scanner with free software such as SDR#, HDSDR, SDR-Radio, GQRX or SDR Touch on Android. Works with computers like Windows, OSX, Linux, Android and .

Perfect for many applications including general radio scanning, air traffic control, public safety, ADS-B aircraft radar, ACARS, trunked radio, P25/MotoTRBO digital voice, POCSAG, weather balloons, APRS, /Meteor M2 weather satellites, radio astronomy, DAB or as a low-cost panadapter with amateur radio.

Comes with a versatile dipole antenna kit, perfect for beginners. Short antennas are great for ADS-B, while antennas work well at lower frequencies. When used in a v-dipole configuration, the antenna is suitable for 137 MHz weather satellites and the International Space Station. Vertical configuration for terrestrial signals. Two mounts and RG174 cable allow you to easily mount the antenna outdoors.

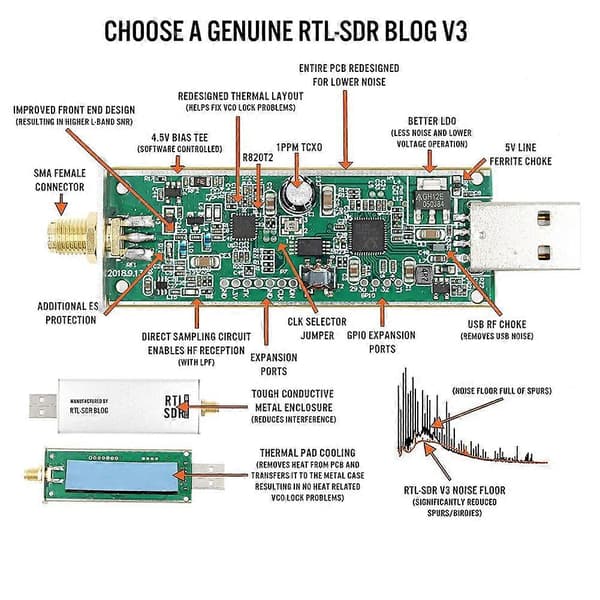

This model has some improvements over others. It uses an improved R820T2 tuner, 1PPM TCXO, better components, a redesigned low-noise PCB, cooling improvements, additional ESD protection and SMA F connectors. It also has a software-activatable bias tee to power LNA and active antenna.



Color: silver

Material: Metal



Package contents:

1 x -SDR radio receiver



Only the above package content, other products are not included.

Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
