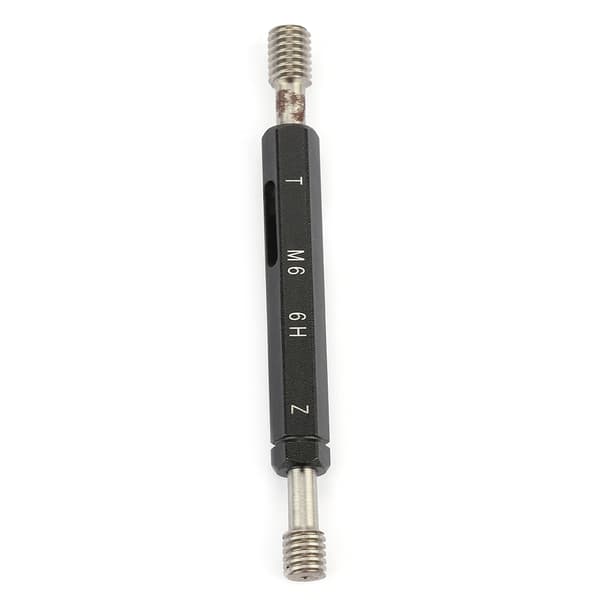

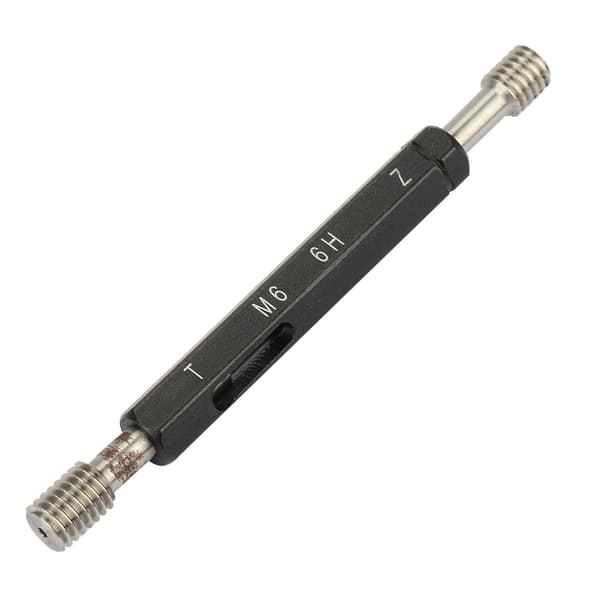

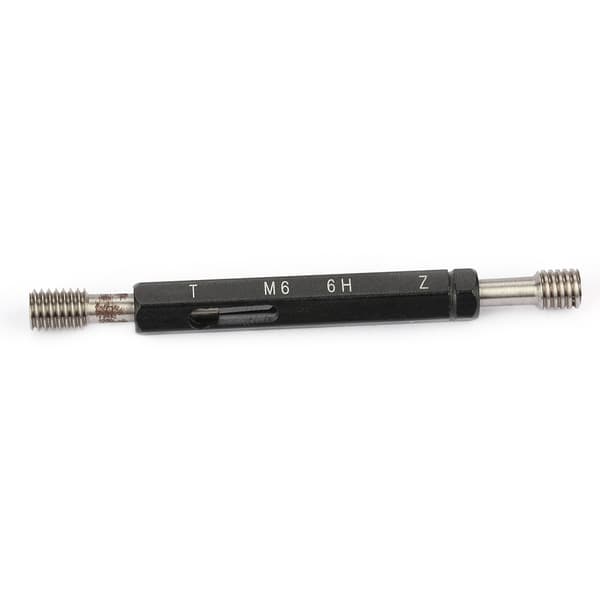

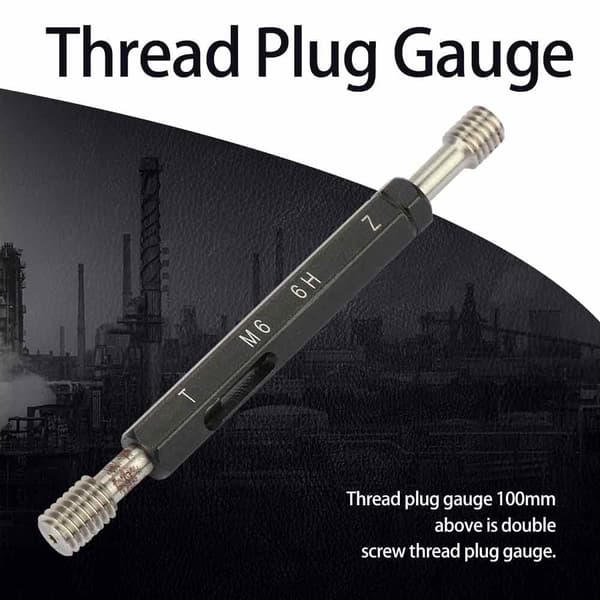

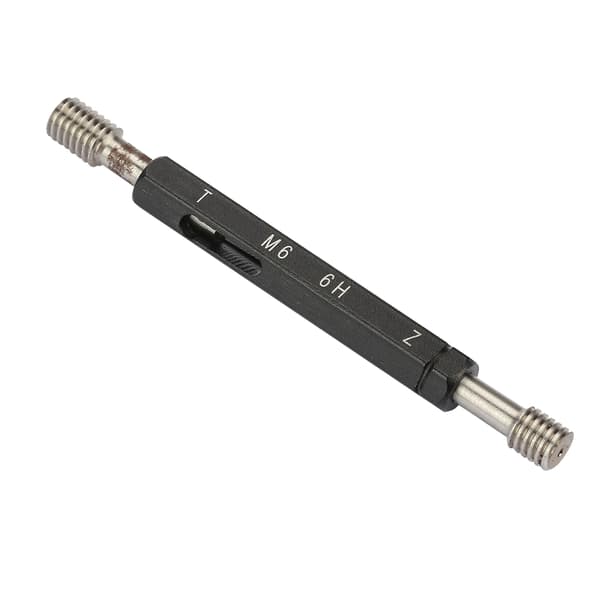

100% brand new and high-quality thread gauge, designed as a precision tool for measuring the accuracy of internal thread sizes. This gauge ensures accurate inspection for various thread applications. For thread gauges under 100mm, the design features a tapered shank, while gauges 100mm and over use a double-screw configuration. The tool is easy to use and maintain, offering superior performance for consistent and reliable measurements.

Specification:

Material: Bearing Steel

Weight: 14~221g / 0.5~7.8oz

Model Options: M1*0.25, M1.2*0.25, M1.6*0.35, M1.8*0.35, M2*0.4, M2.5*0.45, M3*0.5, M4*0.7, M5*0.8, M6*1.0, M8*1.25, M10*1.5, M12*1.75, M14*2.0, M16*2.0, M20*2.5 (choose your desired model)

Inspection and Measurement Process:

1. Before use, clean any chips and impurities from the thread gauge and the measured thread. Then, rotate the ring gauge with your thumb and forefinger to determine the thread in a free state based on the entire thread length; otherwise, an accurate determination is not possible.

2. After the gauge has been verified and approved by relevant inspection and metrological institutions, pair the screw thread gauge with the measured thread. Rotate the ring gauge with your thumb and forefinger; the thread should fit within 2 thread pitches to be considered approved, otherwise, it is judged as a non-conforming product.

Package List:

1* Thread Gauge

Note:

1. Before use: The thread gauge must be checked and certified by relevant inspection and metrological institutions before being used at the production site.

2. During use: Ensure that the tolerance class and deviation code of the tested thread match the tolerance class and deviation code marked on the thread gauge.

3. After use: Clean the measuring parts and accessories and then store them in the designated box. At the production site, place the gauge in a fixed craft position and handle it carefully to prevent impacts or damage to the measuring surface. Strictly avoid forcing the thread gauge into threads like a cutting tool, as this can cause premature wear and affect measurement accuracy.

Note: Please note that the new type and old type of this product will be sent randomly, and make sure you do not mind before ordering.
