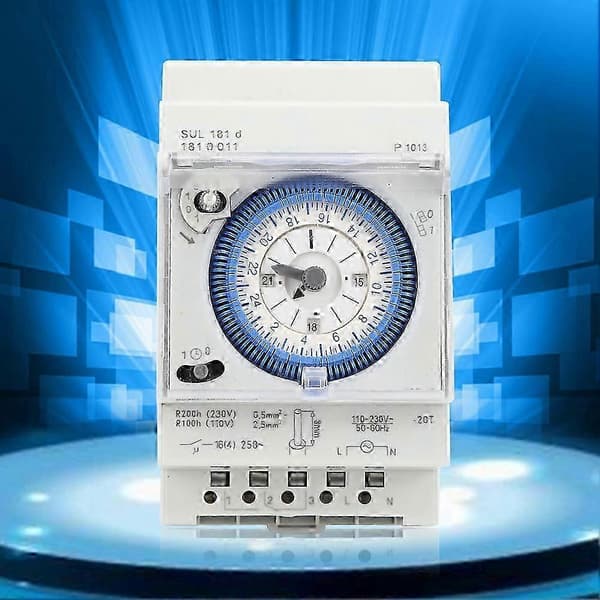

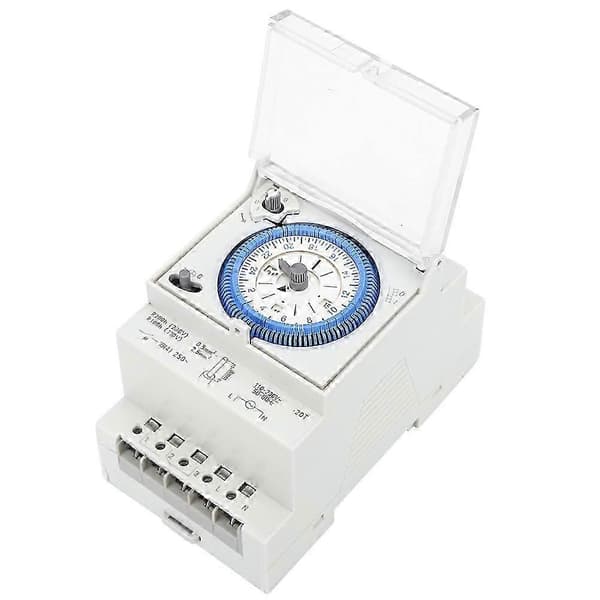

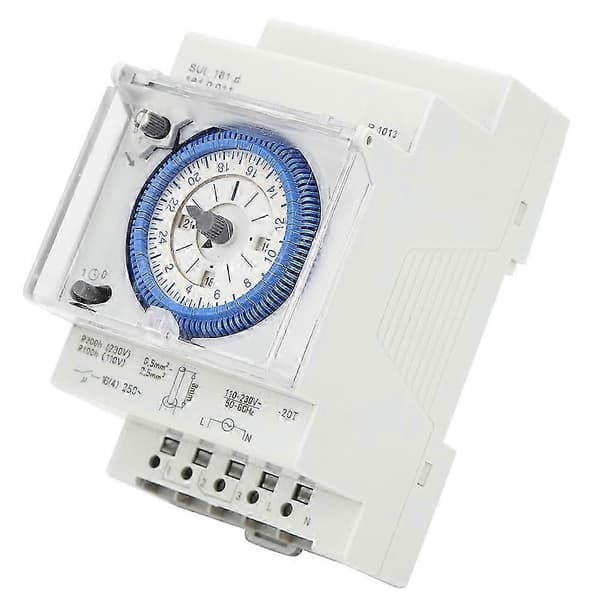

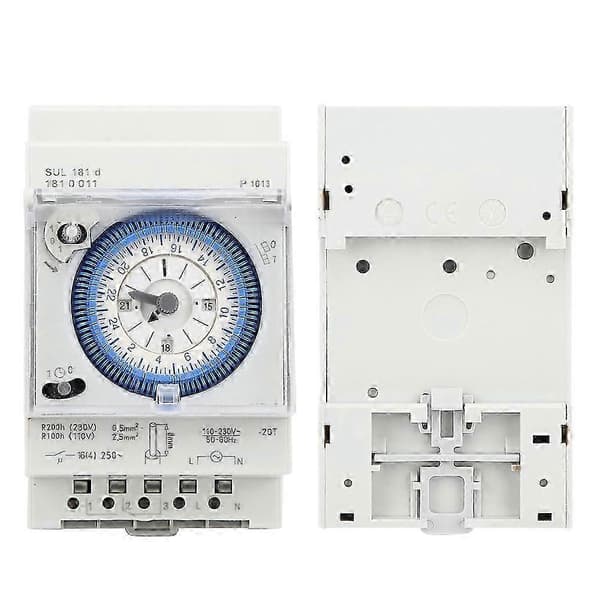

Feature 1Used in industry, street lighting, lighting, agriculture, industrial control, home, household appliances, etc. 2Long electrical and mechanical life of products, electrical life: (under power load) more than 100,000 times, mechanical life: (DC and AC) = 10 million times or more. 3Housing and insulation material, high temperature resistance, high temperature resistance, fireproof thermoplastic material. 4The timer uses advanced control chip for accurate timing, stable and reliable. 5Simple structure, compact size, easy to install and use.SpecificationItem Type: Mechanical TimerModel: SUL181DRated Voltage: 250VACCoil Power: 230VACRated Current: 16ACoil Power: 0.2WContact Switching Current: 16AContact Switching Voltage: 250VACProtective Functions: PlasticContact Load: 16AContact Form: 1HElectrical Life: (under power load) more than 100,000 timesMechanical Life: (DC) = 10 million times or moreMechanical Life: (AC) = 10 million times or moreInsulation Voltage: (between coil and contact) 1000VACInsulation Voltage: (between contacts and contacts) 1000VACContact Resistance 50 Ambient Temperature: -20 ~ + 55 Timing Range: 24h / 24 hours, power storage time 150, minimum setting unit 15 minutes / time, total 96Frequency: 50 ~ 60 HzNumber of Contacts: 1Cycle: 24 hoursInstallation Form: DIN railTerminal Block Form: Plug-in terminalCycle: 4 hoursRetention Hours After Power Failure: Approx. 100 hours at 110 VContact Capacity at 250 V AC, Cos = 1: 16 AContact Capacity at 250 V AC, Cos = 0.6: 4 AMinimum Switching Time: 15 minutesMinimum Setting Interval: 15 minTime Accuracy: 1 s / day (quartz)Switching Output: Potential-free and phase-independentNumber of Switching Sections: 96Standby Consumption: 0.5 WTest Recognition Lamp: ForVDEHousing and Insulation Material: High temperature resistance, high temperature resistance, fireproof thermoplastic materialProtection Class: IP 20Safety Class: II according to EN 60 730-1Applicable Ambient Temperature: -20 ~ + 55 Battery Information: Button cell battery 100mAh
.wang-edit-text{
font-family:'Arial' !important;
}
.wang-edit-text table {
border-top: 1px solid #000;
border-left: 1px solid #000;
}
.wang-edit-text table td,
.wang-edit-text table th {
border-bottom: 1px solid #000;
border-right: 1px solid #000;
padding: 3px 5px;
}
.wang-edit-text table th {
text-align: center;
}Package List1 x Timer1 x Manual
