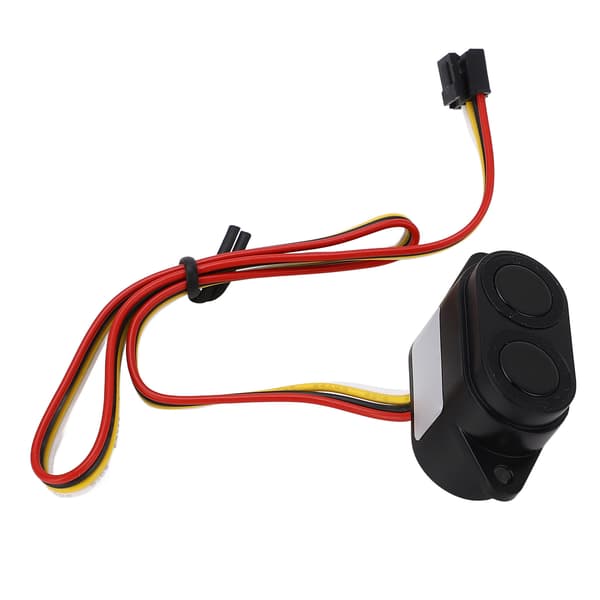

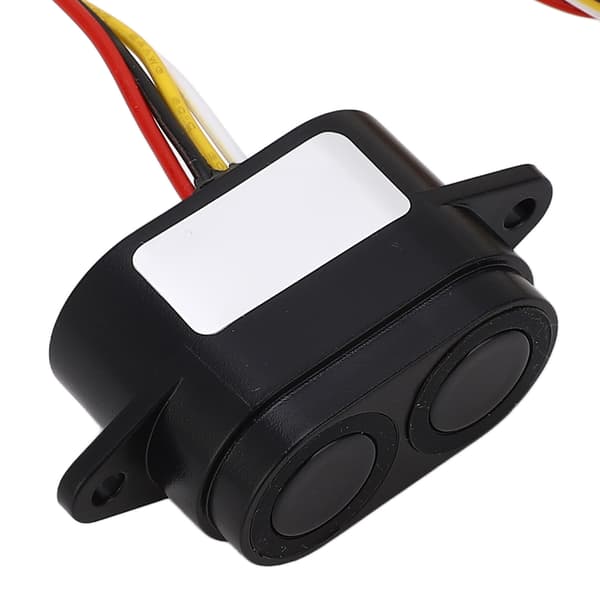

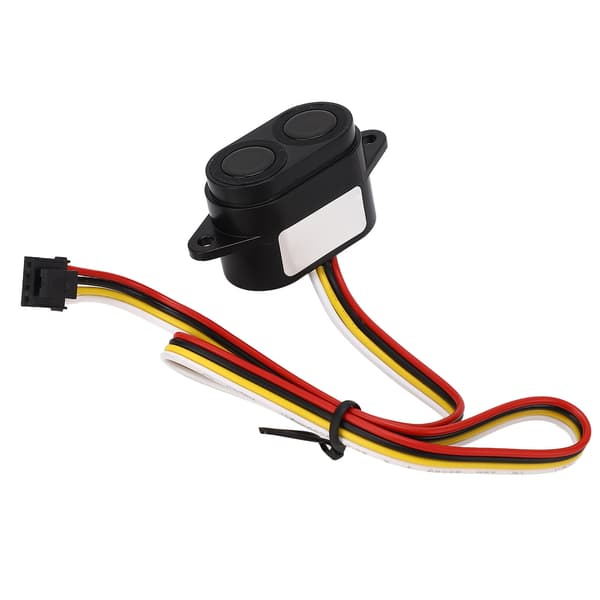

This ultrasonic ranging sensor module is designed for reliable and versatile distance detection in various environments. The detection angle ranges from 30 to 60 degrees, and the module is unaffected by the color, transparency, or material (metal or non-metal) of the detected object, ensuring stable performance in diverse applications.

The module provides stable data output with a built-in low power consumption design, allowing power consumption to be minimized based on actual needs. The blind zone is less than 2cm (0.8in), ensuring accurate close-range measurements.

With an IP67 protection grade, this robot obstacle avoidance sensor is waterproof, dustproof, and oilproof. It is engineered for automatic control applications, offering short response times and effective filtering of same-frequency interference.

This ultrasonic ranging module is suitable for multiple power supply scenarios, including battery power, short or long-distance USB power, switchable power supplies, and high-noise power supplies, making it adaptable to various installations.

The obstacle avoidance sensor employs heterodyne acoustic wave processing technology. When detecting homodyne interference in the environment, it outputs FFFE data to indicate the presence of such interference, enhancing reliability.

With a wide range of applications, this sensor is ideal for object proximity and existence detection, parking management systems, robot obstacle avoidance, automatic control, and more.

Item Type: Ultrasonic Ranging Sensor Module

Material: ABS

Measurement Accuracy: ± (1+S x 0.3%)

Working Voltage: DC3.3V-12V

Blind Zone Distance: <2cm (0.8in)

Output Response Time: 8-140ms

Output Mode: UART automatic

Temperature Compensation: Yes

Flat Range: 2-300cm (0.8-118.1in)

Applications: Robot obstacle avoidance, intelligent trash can detection, parking space detection, smart homes, etc.

Package Includes: 1 x Ultrasonic Ranging Sensor Module
