1. The handle is flexible and small in size, the universal rotary switch is exquisite and beautiful.
2. Uses silver alloy contacts, with good electrical conductivity, stable switch function.
3. Stable operation, convenient and quick switch installation, wider application range.
4. PC flame retardant material, with good insulation performance and high temperature resistance.
5. Can be used as circuit control switch, test equipment switch, motor control switch and transfer switch for electric welding machine.

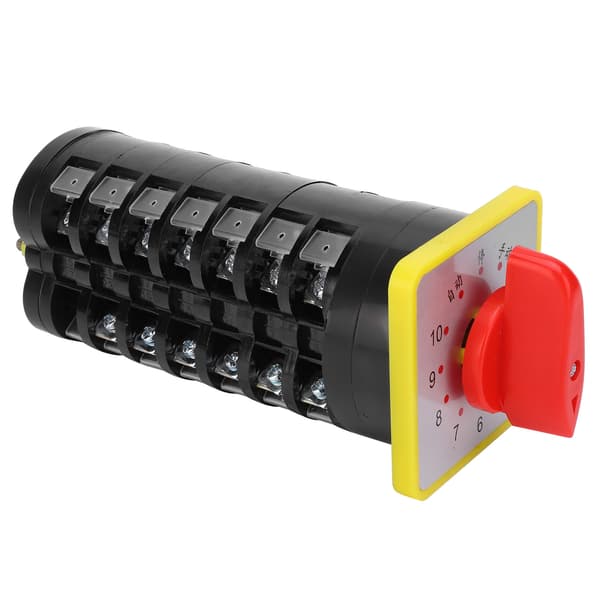

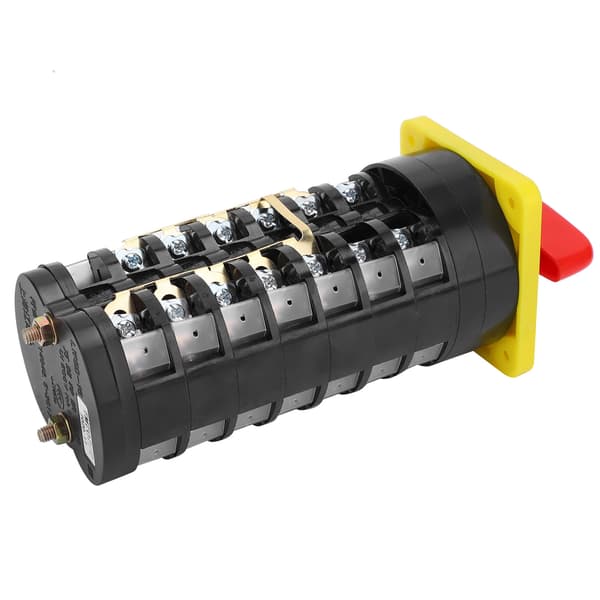

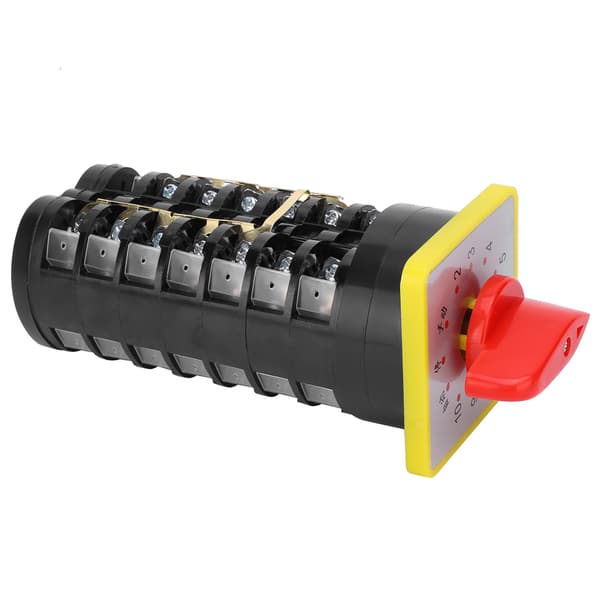

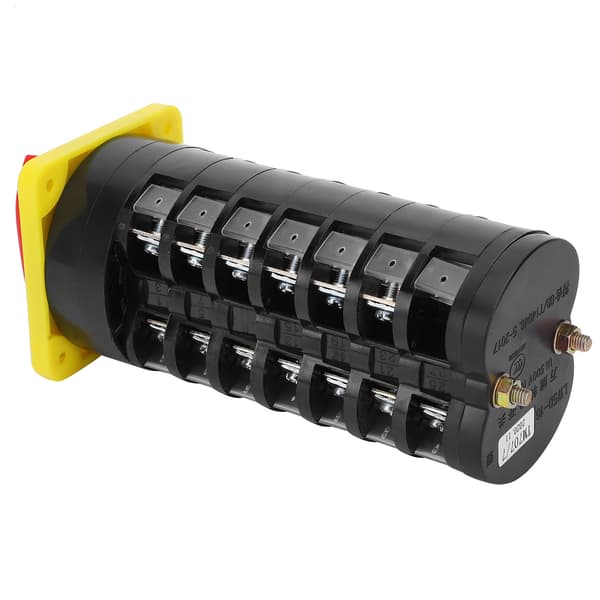

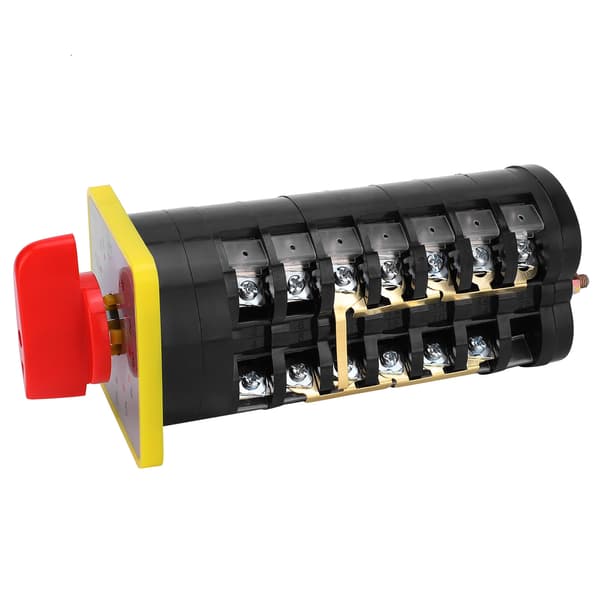

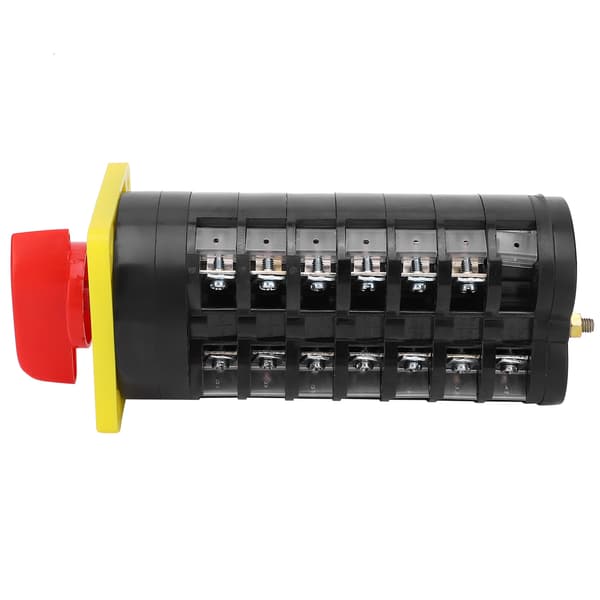

Item Type: Universal Rotary Switch

Material: PC, silver alloy, copper
Applications: The product has a wide range of applications, which can be used as circuit control switch, test equipment switch, motor control switch, main control switch and transfer switch for electric welding machines.
Level: Auto-Off-Manual-2-3-4-5-6-7-8-9-10

Usage Category
AC-15
DC-13
AC-3


Rated Voltage (Ue) V
500 380 220
440 220 110
380


Rated Current (Ie) A
2.0 3.6 4.6
0.14 0.27 0.55
12


Electrical Life cycles
20 x 10⁴
20 x 10⁴
19.5 x 10⁴


Rated Insulation Voltage (Ui) V
500


Conventional Heating Current (Ith) A
16


Operating Frequency, cycles/h
300 (120 when directly controlling the motor)


Mechanical Life
100 x 10⁴

1 x Universal Rotary Switch
