1、Reliable Performance: This wind turbine charge controller adopts industrial-grade components and rigorous manufacturing processes. It is suitable for relatively harsh operating environments such as low temperatures. It also offers reliable performance and long service life. 2、Efficient Charging: This wind turbine charge controller uses PWM technology with MOS tubes in series to make solar and wind energy charging more efficient. In particular, the MCT charging function tracks the maximum current of the solar panel in real time. 3、Fast Heat Dissipation: The wind turbine charge controller is designed with an aluminum casing and a versatile bottom plate to increase the heat dissipation area. As a result, the controller can maintain optimal heat dissipation for a long time. 4、IP67 Waterproof: This wind turbine charge controller is fully protected against water up to IP67. The wind and solar charge controller works stably even in very humid environments. 5、Multiple Protections: The wind turbine charge controller has overvoltage, undervoltage, and overload protection, battery reverse connection and open circuit protection, lightning protection, etc.

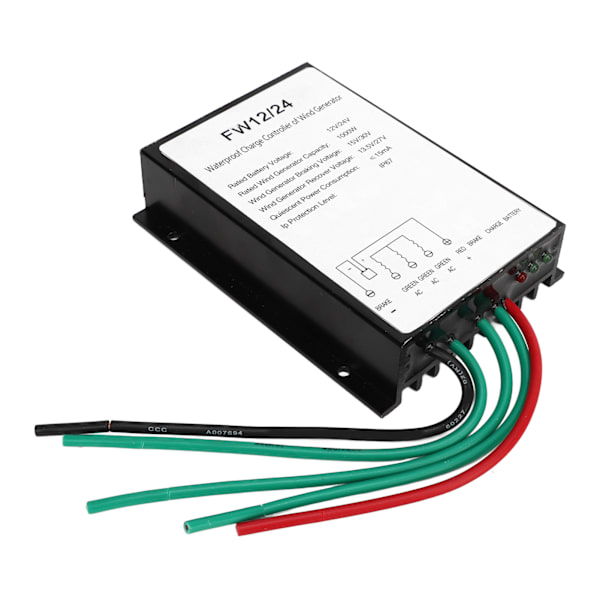

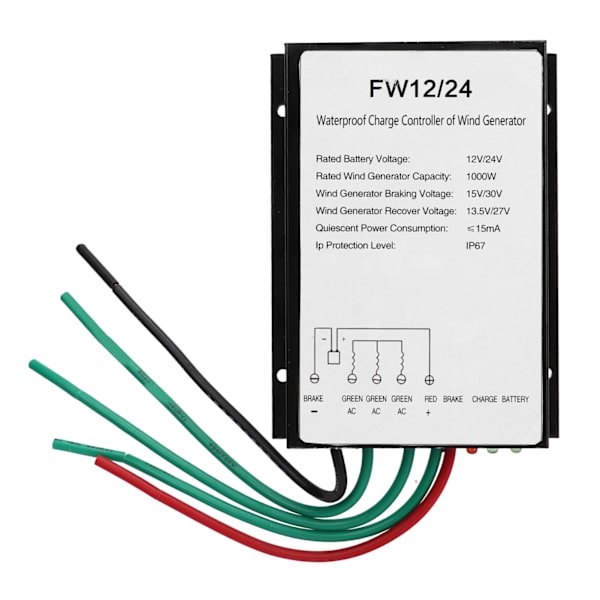

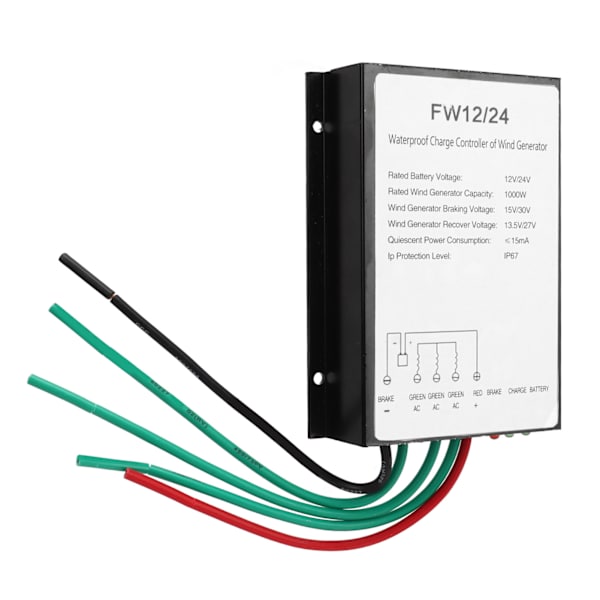

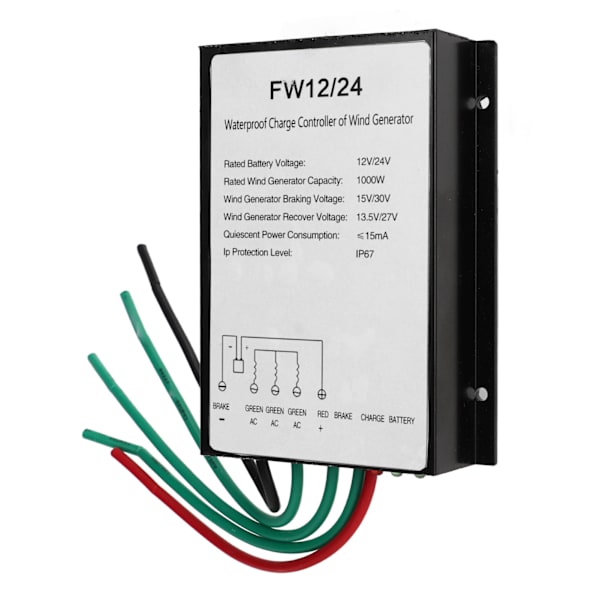

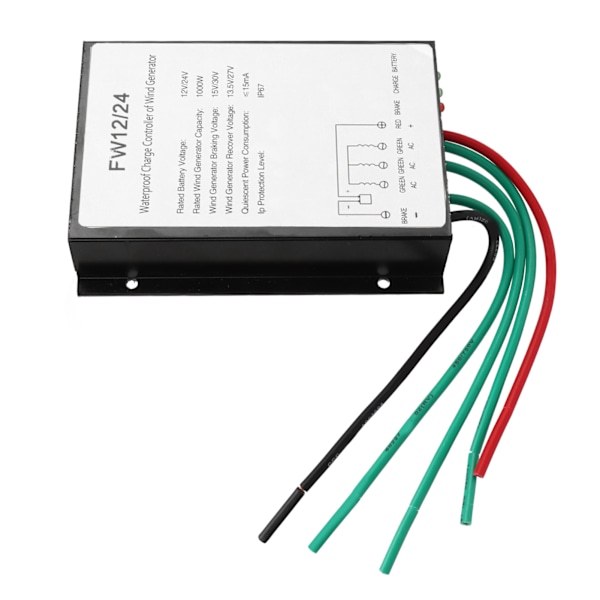

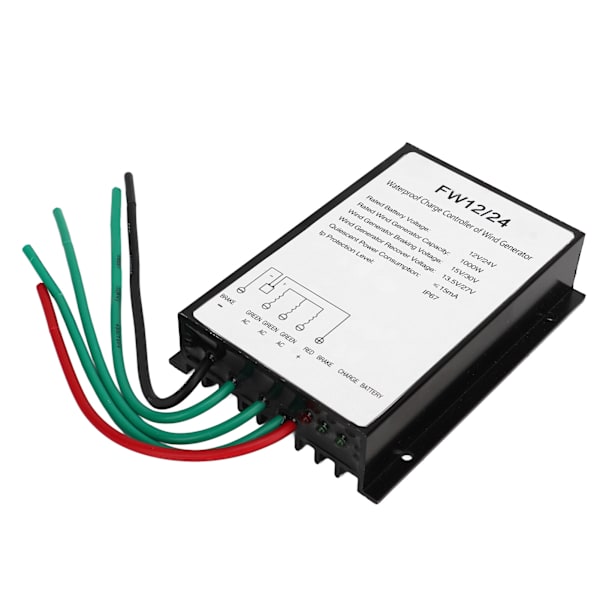

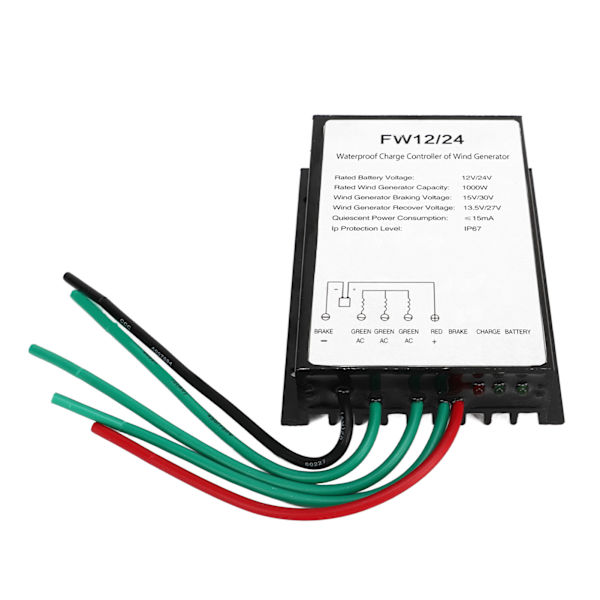

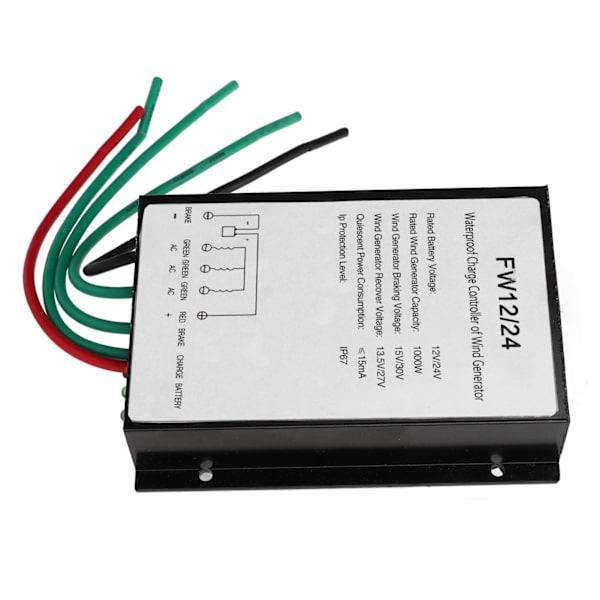

Item Type: Wind Turbine Charge Controller
Material: Aluminum Alloy
Model: FW12 24
Rated Battery Voltage: 12V 24V
Rated Capacity of Wind Turbine: 1000W
Wind Turbine Brake Voltage: 15 30V
Wind Turbine Recovery Voltage: 13.5V 27V
Static Power Consumption: ≤15MA
Waterproof Level: IP67
Display Mode: LED (light emitting diode)
Operating Temperature Range: -35-75℃
Function
1. This controller can control the wind turbine to charge the battery automatically. When the battery is fully charged, the wind turbine is automatically controlled by the internal circuit to brake the wind turbine. When the battery voltage drops to the recovery voltage, the wind turbine resumes charging the battery, which protects the wind turbine and the battery.
2. The modular design with independent intellectual property rights ensures the system's performance to the maximum. The rectifier and brake circuit part of this controller adopts the integrated module designed by our company, which is more advanced than the traditional design in terms of heat dissipation and reliability.
3. Full waterproof protection. The controller is fully sealed and waterproof, with a protection level of IP67 or higher, so that it can be used normally for a long time even if placed in water, and its stability and reliability are greatly improved.

1 x
Wind Turbine Charge Controller
