Description
High Quality: The drill bit uses ultra-hard alloy which makes the cutting sharper, chip removal unobstructed with outstanding reaming capacity and excellent reaming performance.

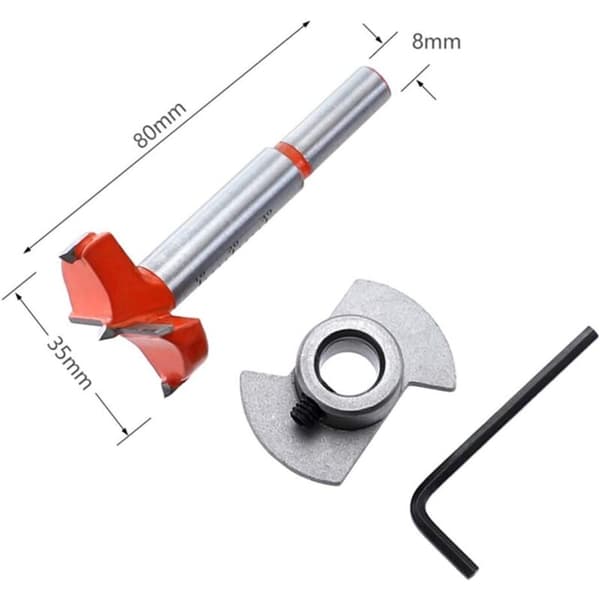

Hinge Hole Cutter: drill diameter is 35mm. Special detachable depth stop design makes drilling easier.
Hidden Hinge Reaming Jig: Features a V-locator that works from a central reference line and quickly locates the drilling center for all hinge and mounting plate brands
Easy to Use: Easily and conveniently punch the cup hole on the cabinet door or desktop yourself with the hinge drilling jig, suitable for self-operation at home, even if you are not professional you can quickly locate the drilling center for hinges and mounting plates.
Multiple Uses: suitable for pillar drill, pistol drill, bench drill, vertical drill, electric hand drill, stand drill and movable belt type magnetic drill, etc. The drill guide is widely used, which is suitable for woodworking DIY or professional engineers.
Description:

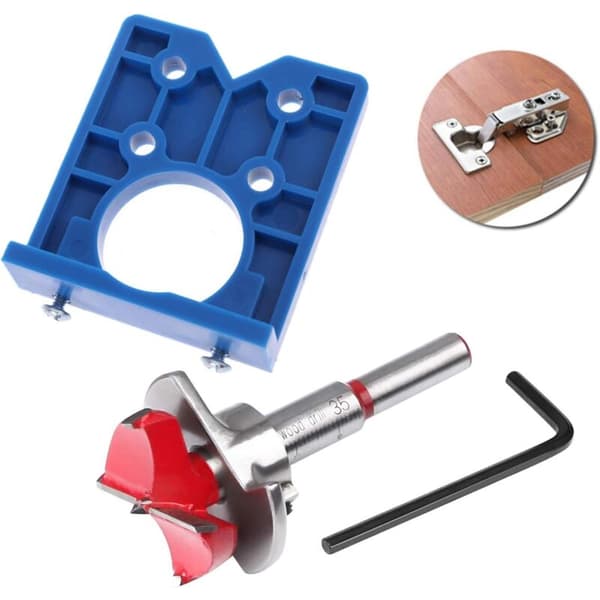

35mm Hinge Jig ABS plastic hinge installation woodworking drill guide hinge hole reaming furniture door cabinet tool for woodworking
Features:
1. Quick hinge installation jig
The hinge drilling guide can help you quickly drill the perfect hidden hinge hole. Suitable for positioning and installation of furniture door cabinet hinges
2. 35mm hinge hole saw jig
Hinge hole jig made of ABS plastic, lightweight and portable, easy to use.

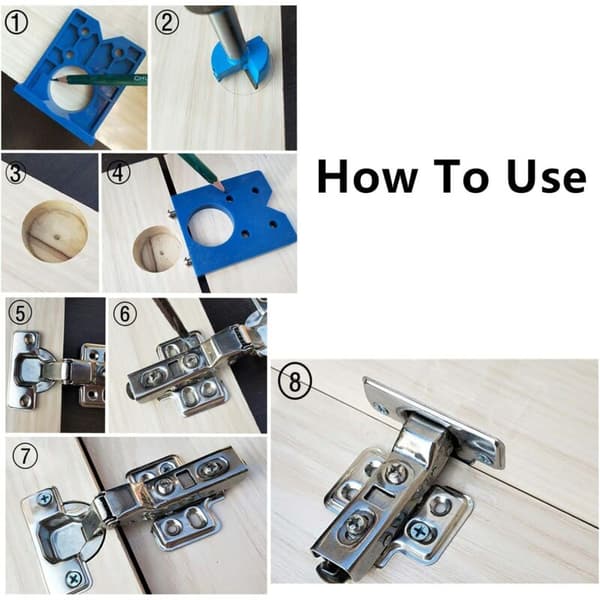

How to use:
1. Determine the position of the hinge cup, the short board up, the screw is fixed on the edge of the board, drill the hole of the hinge cup.
2. Draw a matching center line on the other board, the short board is facing down, the center line is aligned with the inverted triangle,
drill the hinge base positioning hole.
3. Install the hinges.

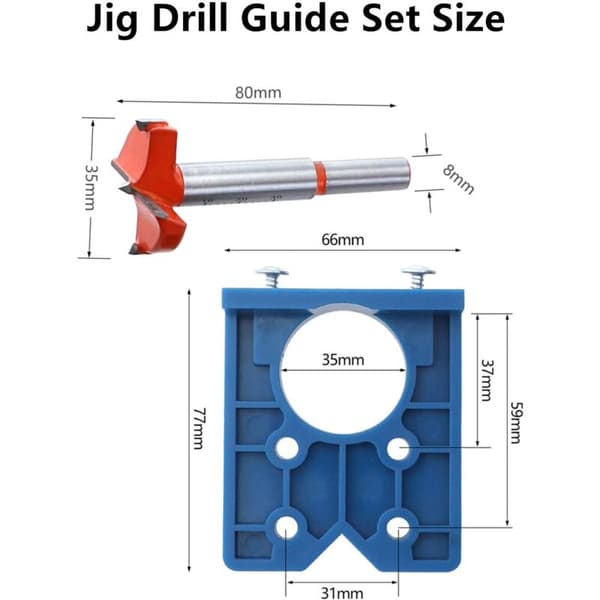

Specifications:
Material: ABS
Hole: 35mm
Size: 77*66mm
Package included:
1x 35mm hinge drilling template + Forstner drill bit set.
