Features
Desktop hands-free design, wired scanning platform free your hand and improve the working efficiency.
Super fast and sensitive decoding speed, make the mobile payment more easily.Large scanning window, easy to scan the barcode. Support Continuous or Auto Sense scanning modes.
Scanner with USB cable, plug and play, simple operation.
Compatible with Windows, MAC, Android system.

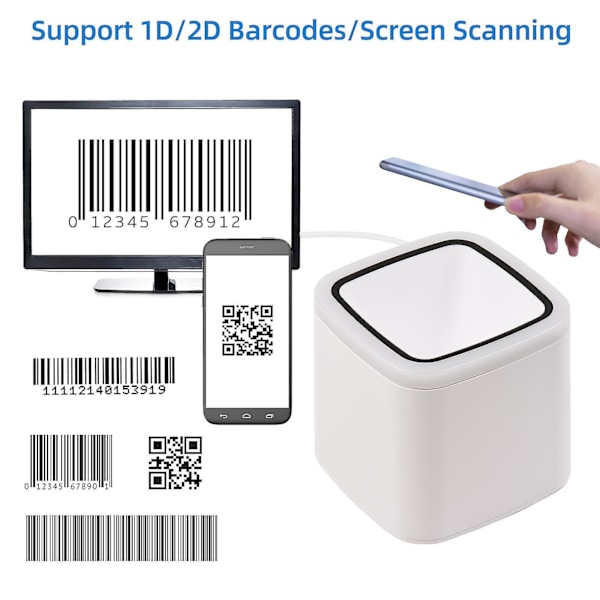

Support scanning 1D/2D barcodes on paper, smartphone/tablet/PC screen.
1D:CODE128/EAN8/EAN13/UPCE/UPCA/CODE39/CODABAR/CODE93/ITF25/MATRIX25/CHNPOST25/INDUSTRIAL25/COOP25/STANDARD25/PLESSEY/MSIPLESSEY/CODE11.
2D: QR Code/PDF417/DataMatrix/HAN-XIN Code.
Made of high quality ABS material, durable to use.
With anti-skid pads at the bottom, stable to use. (Drop Test: Still working after falling from 1.5m)Widely used in supermarket, retails stores, restaurants, clothing store, chemist's shop, library and other fields.
Specifications
Model: D33A
Color: White
Material: ABS
Image Sensor: 640 * 480 CMOS
Light Source: White LED 650nm10%
Scanning Mode: Induction Scan/Continuous Scan

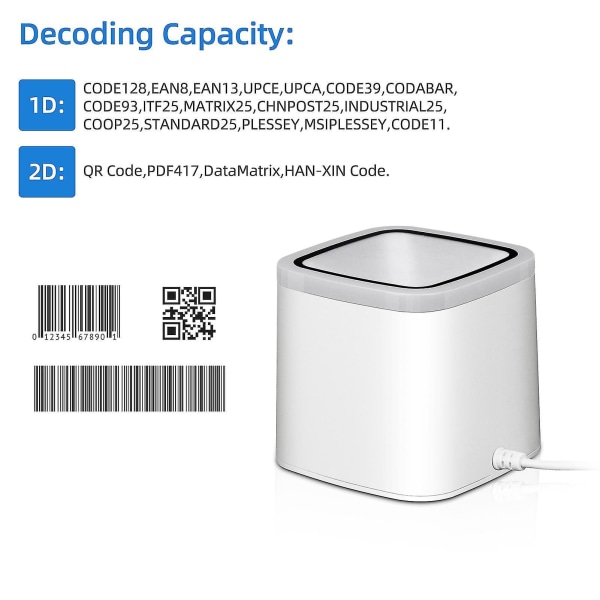

Decoding Capacity:
1D:CODE128/EAN8/EAN13/UPCE/UPCA/CODE39/CODABAR/CODE93/ITF25/MATRIX25/CHNPOST25/INDUSTRIAL25/COOP25/STANDARD25/PLESSEY/MSIPLESSEY/CODE11.
2D: QR Code/PDF417/DataMatrix/HAN-XIN Code.
Code Available: 1D/2D Codes printing on paper or screen
Compatible System: Compatible with Windows/Mac/Android
Resolution: 5mil
Interface: USB
Working Voltage: 5V DC10%
Operating Temperature: -20 ~50
Storage Temperature: -20~ 70
Humidity: 5% - 93%(no-condensing)
Ambient Light: 0 ~ 100,000 lux(nature light )
ESD: 9 KV (contact discharge); 15 KV (air discharge)
Item Size: 88 * 88 * 82.5mm / 3.5 * 3.5 * 3.2inItem
Weight: 180g / 6.3oz
Package Size: 13.0 * 12.0 * 12.2cm / 5.1 * 4.7 * 4.8in
Package Weight: 279g / 9.8oz
Note
This scanner is mainly used for mobile payment scanning, mainly for mobile phone screen code, not suitable for scanning commodity printing barcode.
Packing List:1 * Scanner with USB Cable1 * User Manual
